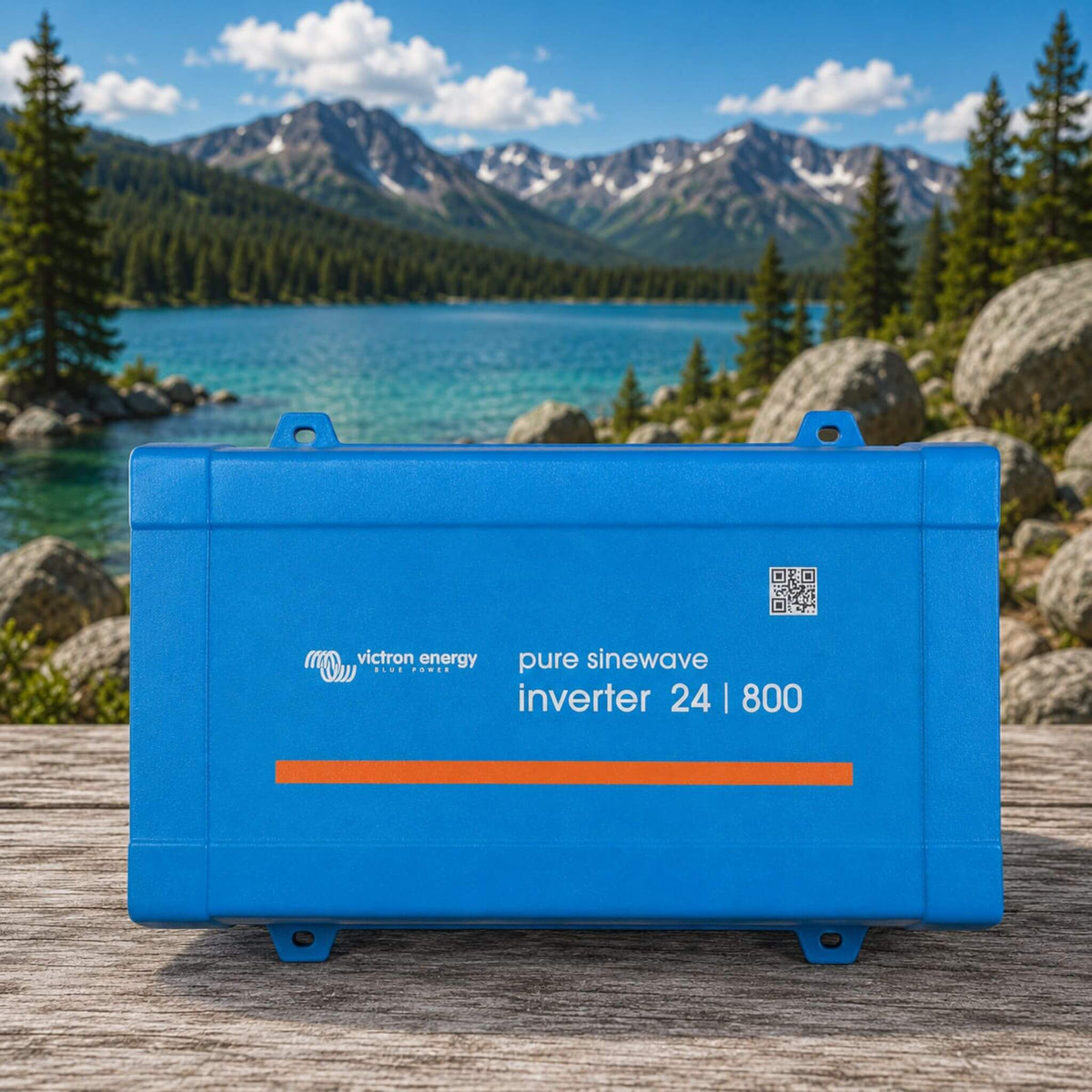

VICTRON INVERTER VE.DIRECT 24/800 | 120V NEMA 5-15R

⚡ Reliable AC Power Conversion

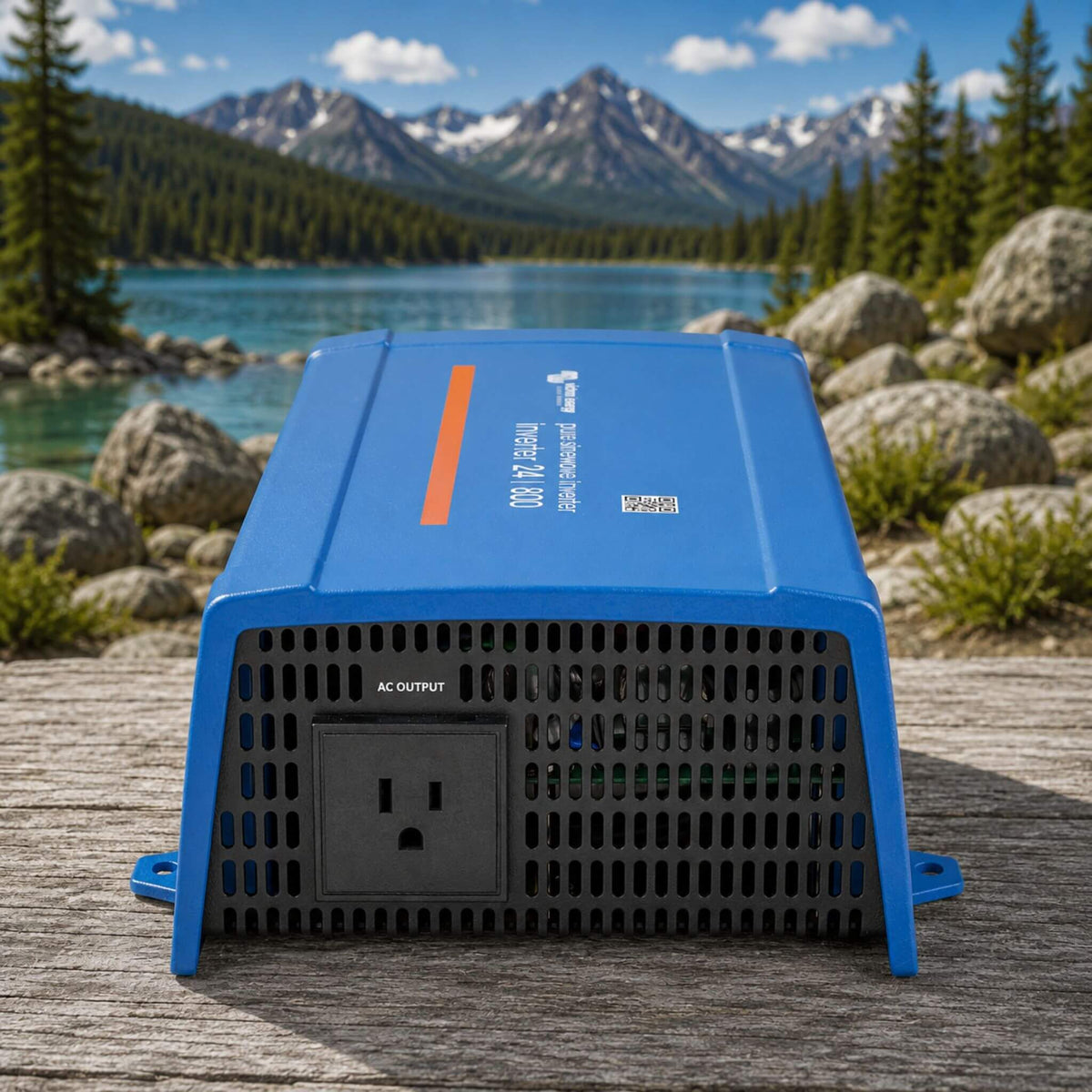

The Victron Energy Inverter VE.Direct converts 12V, 24V or 48V DC battery power into stable 120V or 230V AC power for domestic equipment, vehicle electrical systems and off-grid applications.

🔌 VE.Direct Communication

The VE.Direct communication port allows the inverter to be connected to a computer using a VE.Direct to USB interface or to compatible mobile devices using the VE.Direct Bluetooth Smart dongle, sold separately.

⚙️ Fully Configurable

The inverter offers adjustable settings including low battery voltage levels, output voltage, frequency and ECO mode. This allows the inverter to be configured to suit different electrical system requirements.

🌿 ECO Mode

ECO mode reduces power consumption when the AC load is low. The inverter switches to standby and periodically checks for a load, automatically returning to normal operation when the load exceeds the configured level.

🛡️ Built-In Protection

The Inverter VE.Direct is protected against short circuits, overload, excessive battery voltage, low battery voltage, overheating and excessive DC ripple.

🔧 Easy Installation

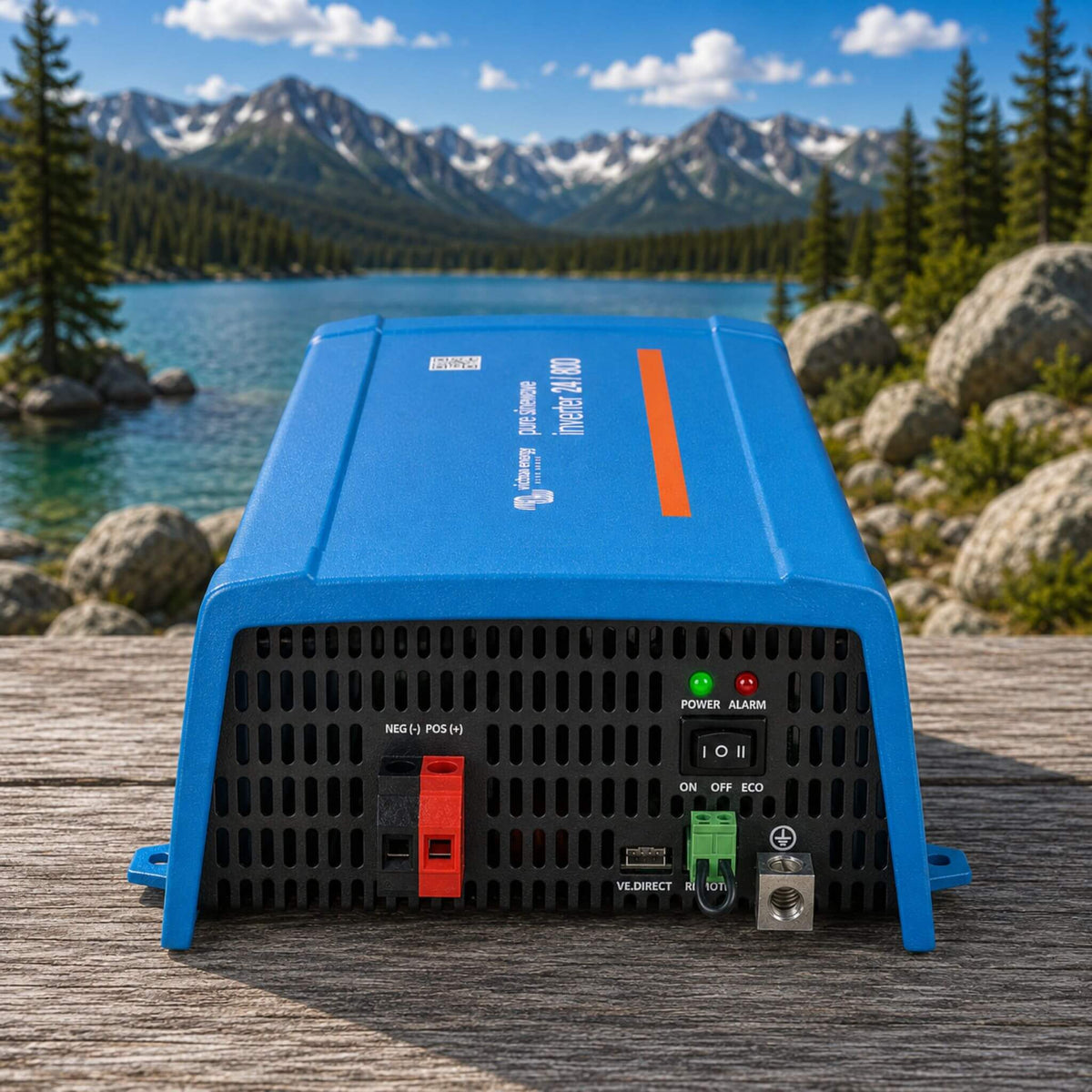

The inverter features DC connections with screw terminals, requiring no special tools for installation. A remote on/off switch can also be connected for convenient system control.

🚐 Ideal Applications

Victron Energy Inverter VE.Direct inverters are designed to provide reliable AC power in a wide range of mobile and off-grid electrical systems.

• 🚐 Van conversions
• 🚍 RV electrical systems
• ⛵ Marine installations
• 🚚 Commercial and service vehicles
• 🌲 Off-grid power systems
• 🏕️ Recreational applications
• 🔋 Battery-powered AC systems

🌍 Why Choose Victron Energy

Victron Energy Inverter VE.Direct inverters are designed for reliable operation in demanding electrical systems. With proven reliability, configurable operating settings and built-in protection, they provide dependable AC power from 12V, 24V or 48V DC battery systems.

⭐ Key Benefits

• Reliable 120V or 230V AC power conversion
• Available for 12V, 24V and 48V DC battery systems
• Models from 250VA to 1600VA
• Configurable output voltage and frequency
• ECO mode for reduced standby power consumption
• Built-in protection against overload, short circuit and overheating
• Remote on/off capability
• VE.Direct communication for monitoring and configuration
• Multiple AC outlet configurations depending on the model

🔗 Part of the Victron Ecosystem

The VE.Direct communication port allows the inverter to connect with Victron products and accessories for monitoring, configuration and system integration. Compatible accessories include the VE.Direct to USB interface, VE.Direct Bluetooth Smart dongle, VE.Direct cable and Inverter Control VE.Direct.
