SPRINTER — DUAL REAR WHEEL | FRESH WATER TANK 32 GAL

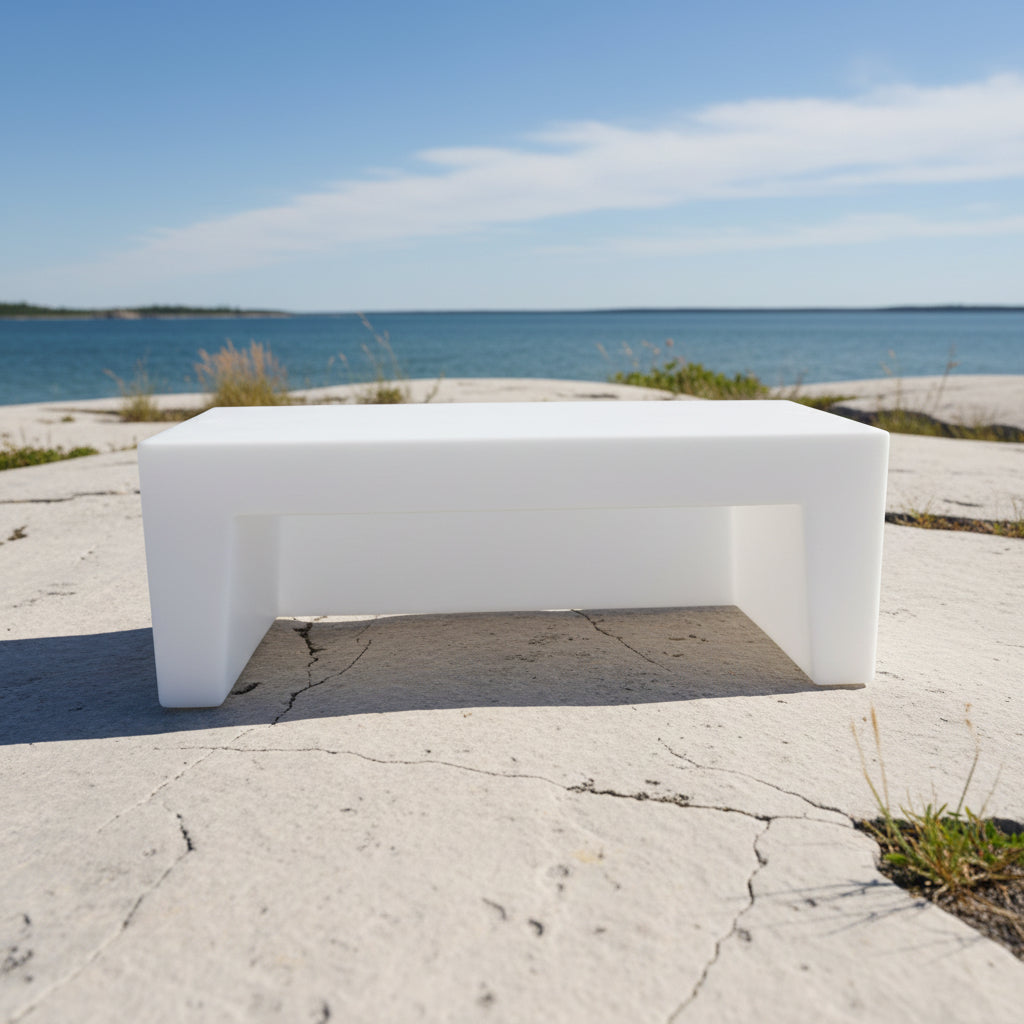

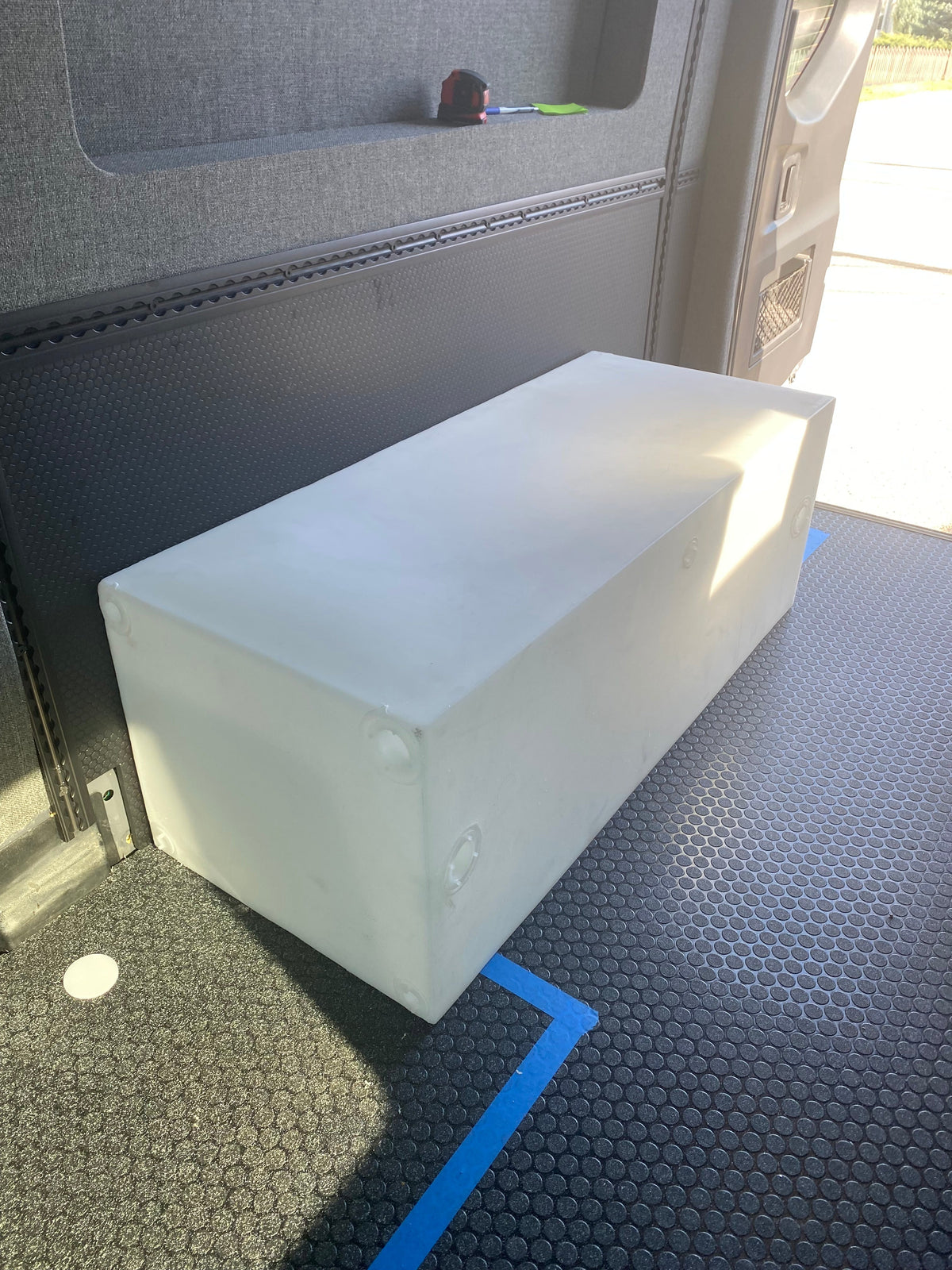

Designed specifically for Mercedes-Benz Sprinter vans equipped with Dual Rear Wheels (DRW / Dually), this 32-gallon fresh water tank is engineered to maximize available space around the rear wheel well while providing reliable onboard water storage. Its symmetrical design allows installation on either the driver or passenger side of the vehicle.

Key Features

• Designed for Sprinter Dual Rear Wheel (DRW / Dually) models
• Not compatible with Single Rear Wheel (SRW) models
• 32 US Gallon (121.1 L) fresh water capacity
• Driver-side or passenger-side installation
• Symmetrical reversible design
• Food-grade and BPA-free polyethylene construction
• CSA approved for potable water use
• Maximizes otherwise unused wheel well space
• Square exterior surfaces simplify cabinetry and furniture installation
• Compatible with vans with or without flooring installed
• Compatible with water level sender systems

Designed to provide reliable fresh water storage while maximizing available interior space in Sprinter van conversions.

Compatibility

• Vehicle Compatibility: Mercedes-Benz Sprinter T1N (2001-2006), NCV3 (2007-2018), VS30 (2019-Present)
• Wheelbase Compatibility: All Wheelbases
• Rear Wheel Configuration: Dual Rear Wheel (DRW / Dually) Only
• Single Rear Wheel Compatible: No

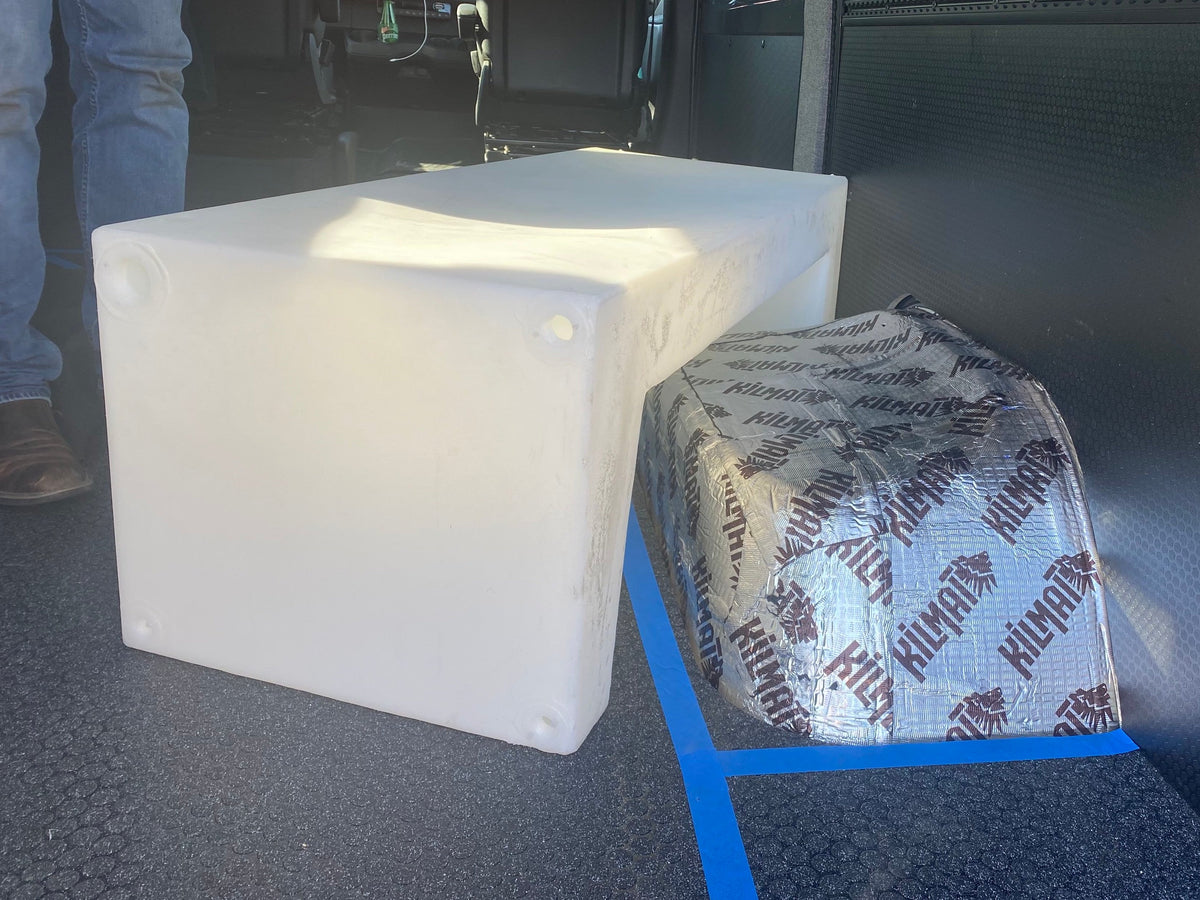

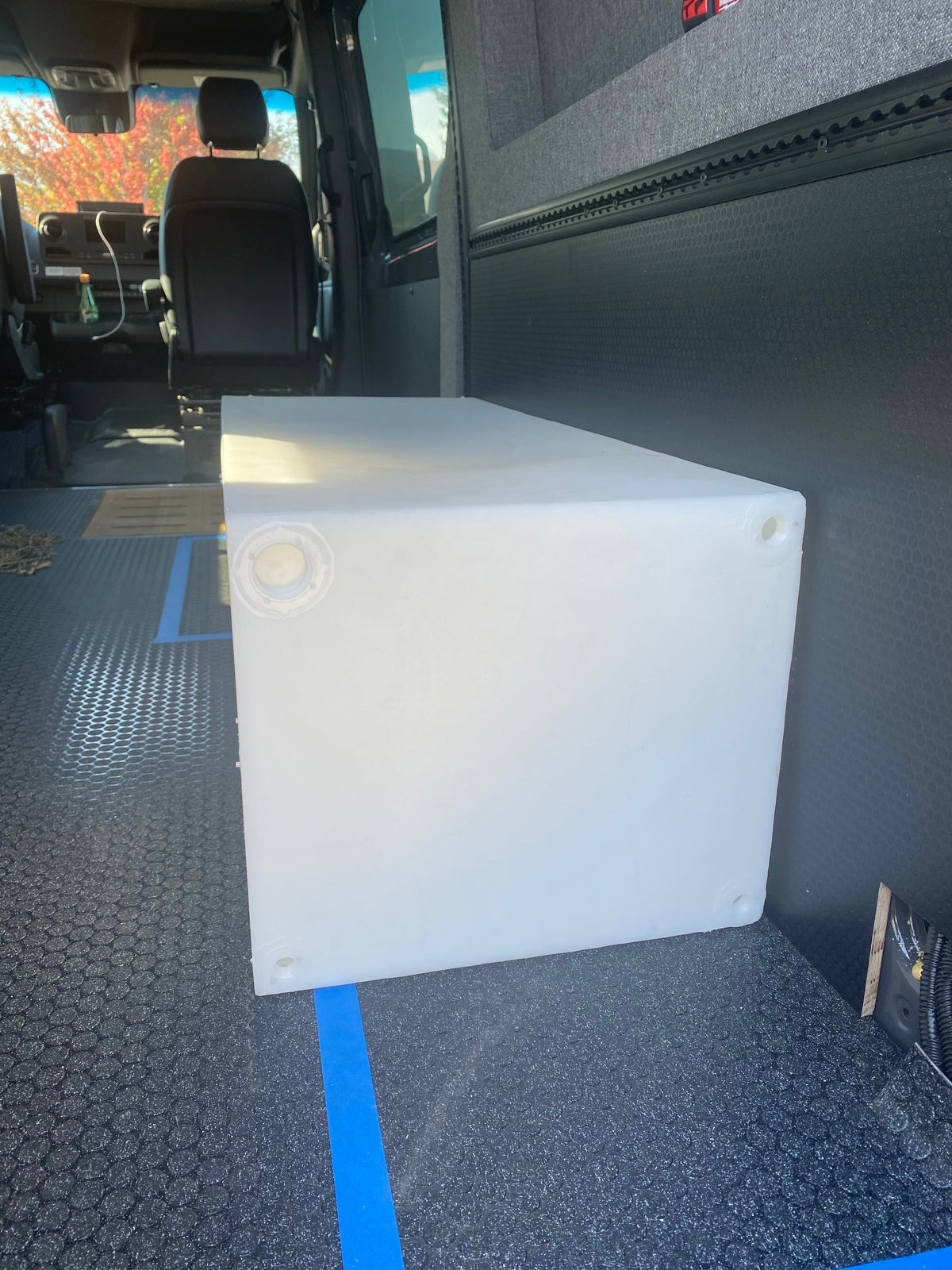

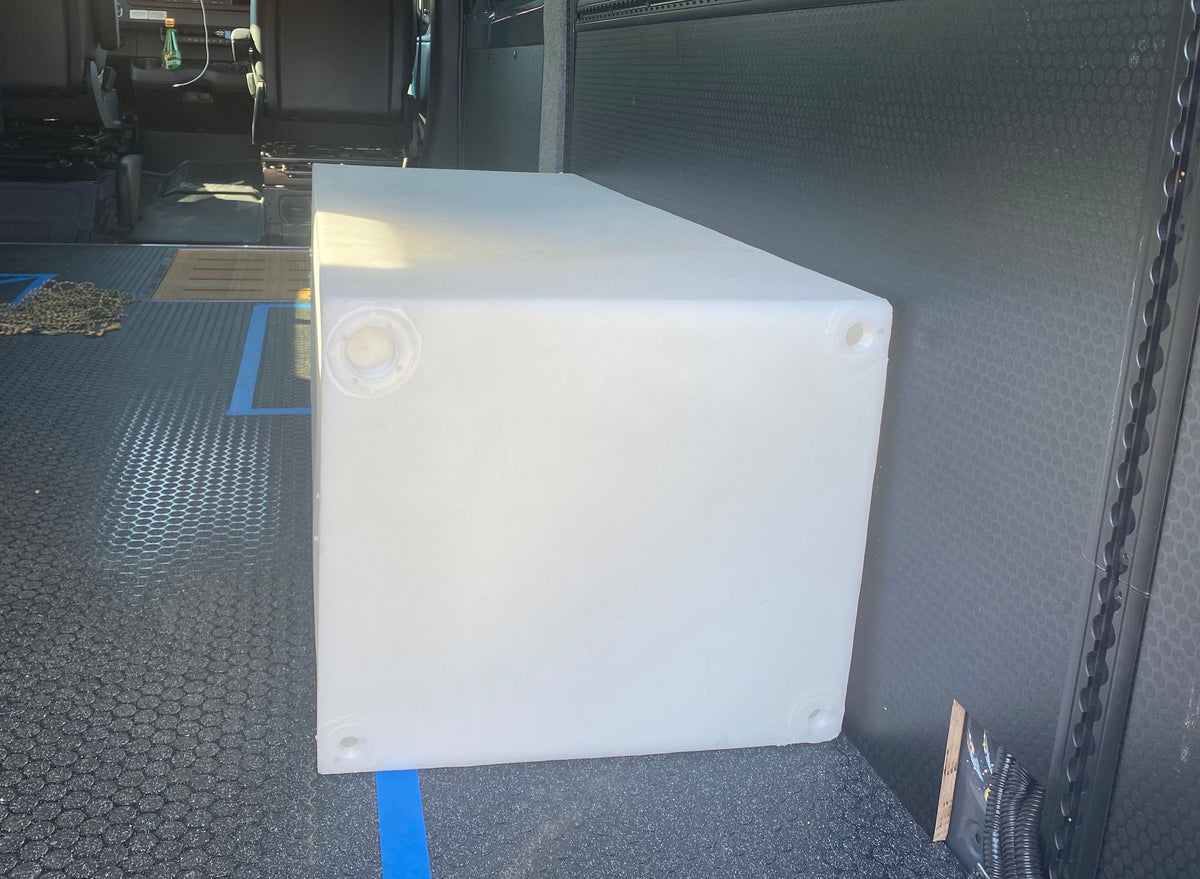

• Installation Location: Driver Side or Passenger Side Rear Wheel Well
• Tank Orientation: Reversible / Symmetrical Design

Tank Specifications

• Tank Type: Wheel Well Fresh Water Tank
• Application: Fresh Water Tank
• Capacity: 32 US Gallons (121.1 Litres)

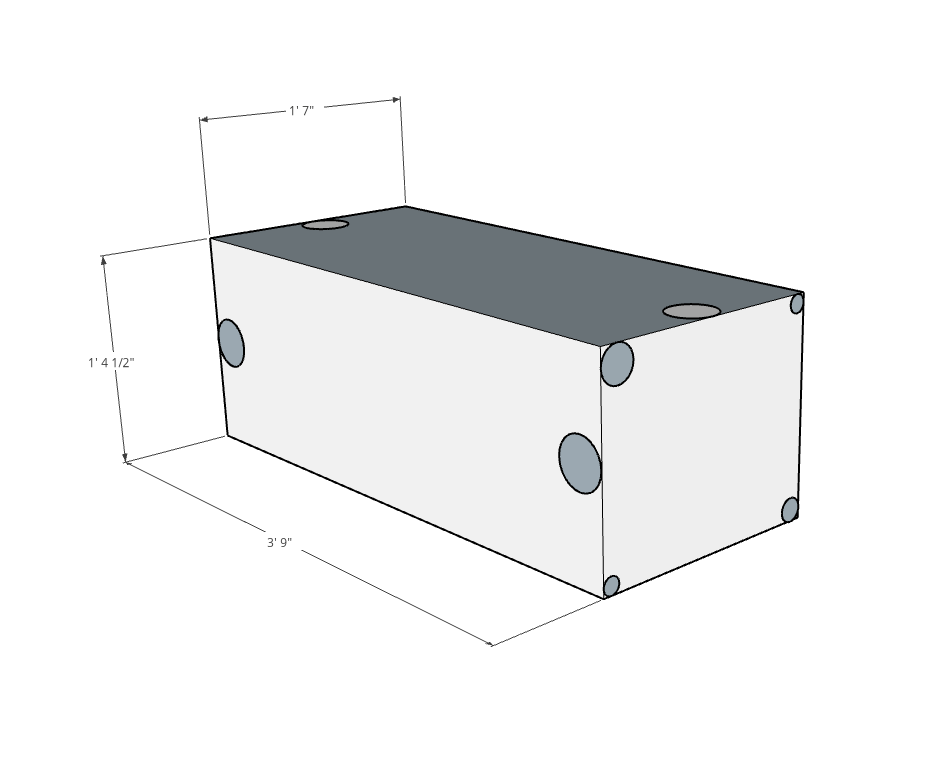

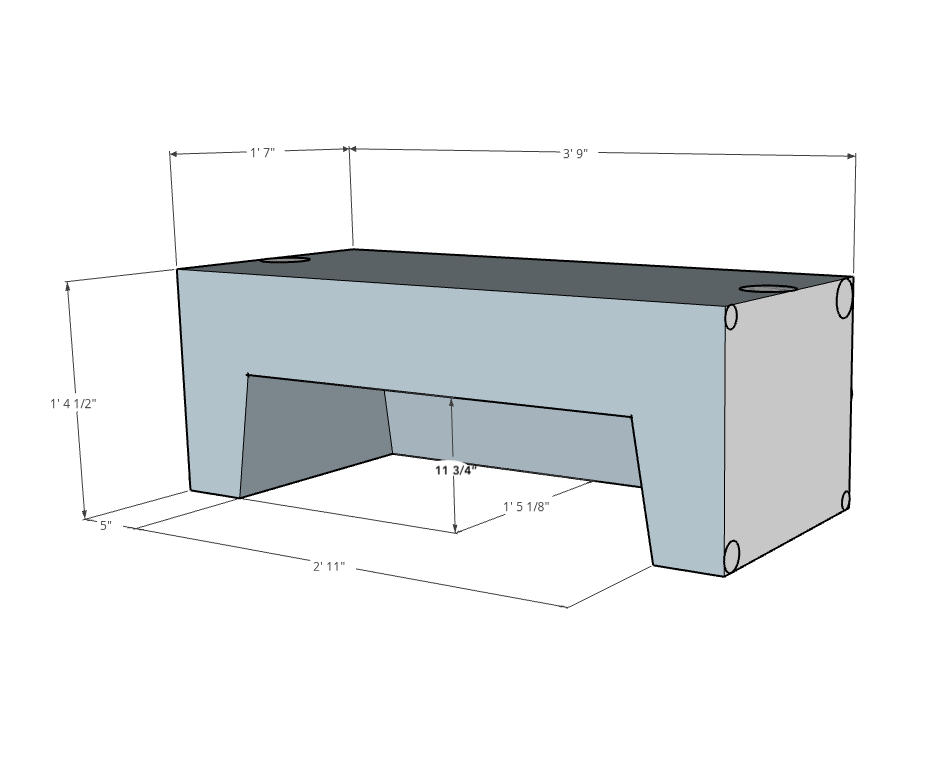

• Dimensions: 45" x 19" x 16.5"
• Material: Linear Low-Density Polyethylene (LLDPE)
• Wall Thickness: Approximately 3/16"

Construction

• Food Grade: Yes
• BPA Free: Yes
• Certification: CSA Approved for Potable Water Use

Additional Information

• Flooring Compatibility: Compatible with or without flooring installed
• Water Level Sensor Compatible: Yes
• Recommended Water Level Sender: KUS S5U Water Level Sender

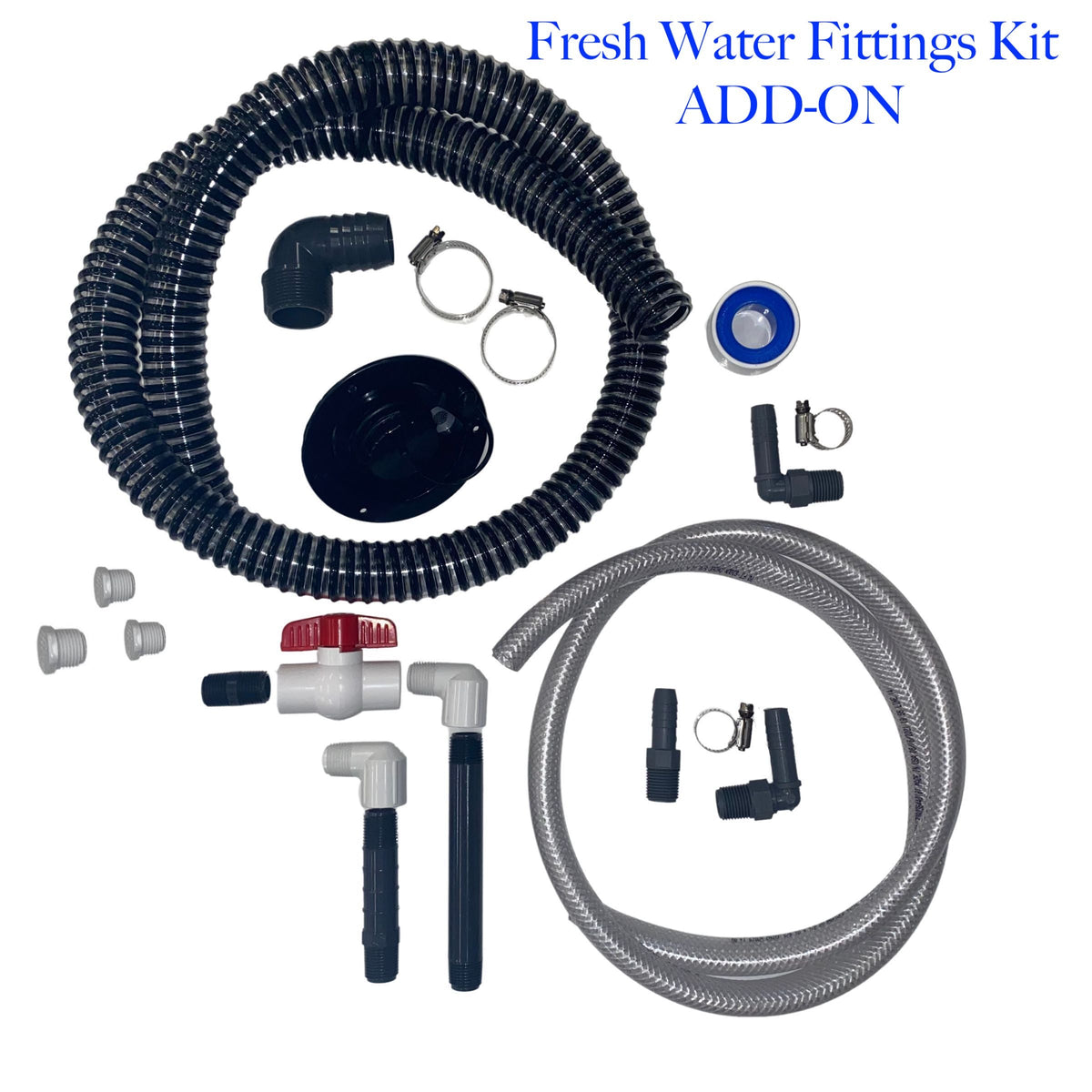

• Additional Fittings: Optional Fresh Water Fittings Kit Available

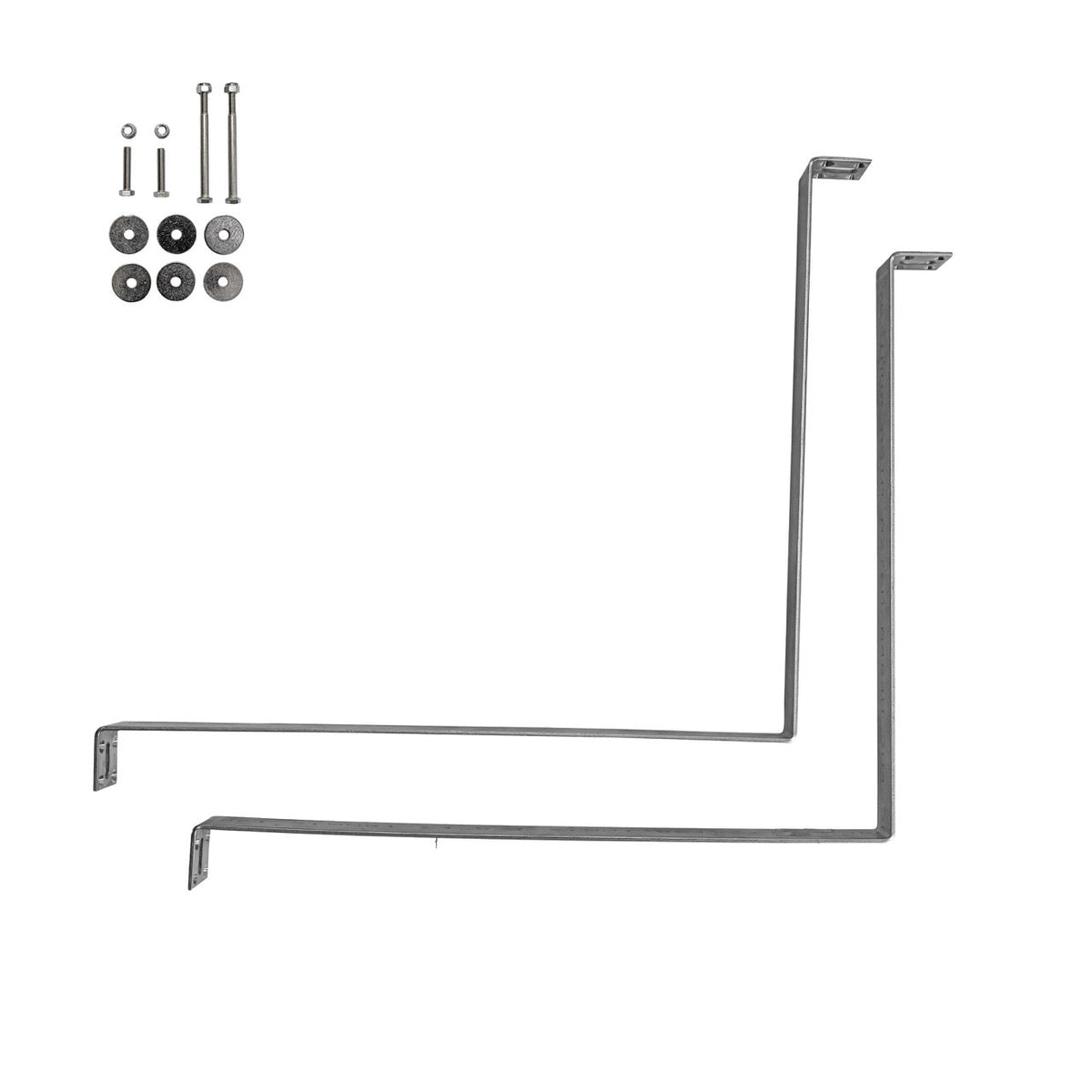

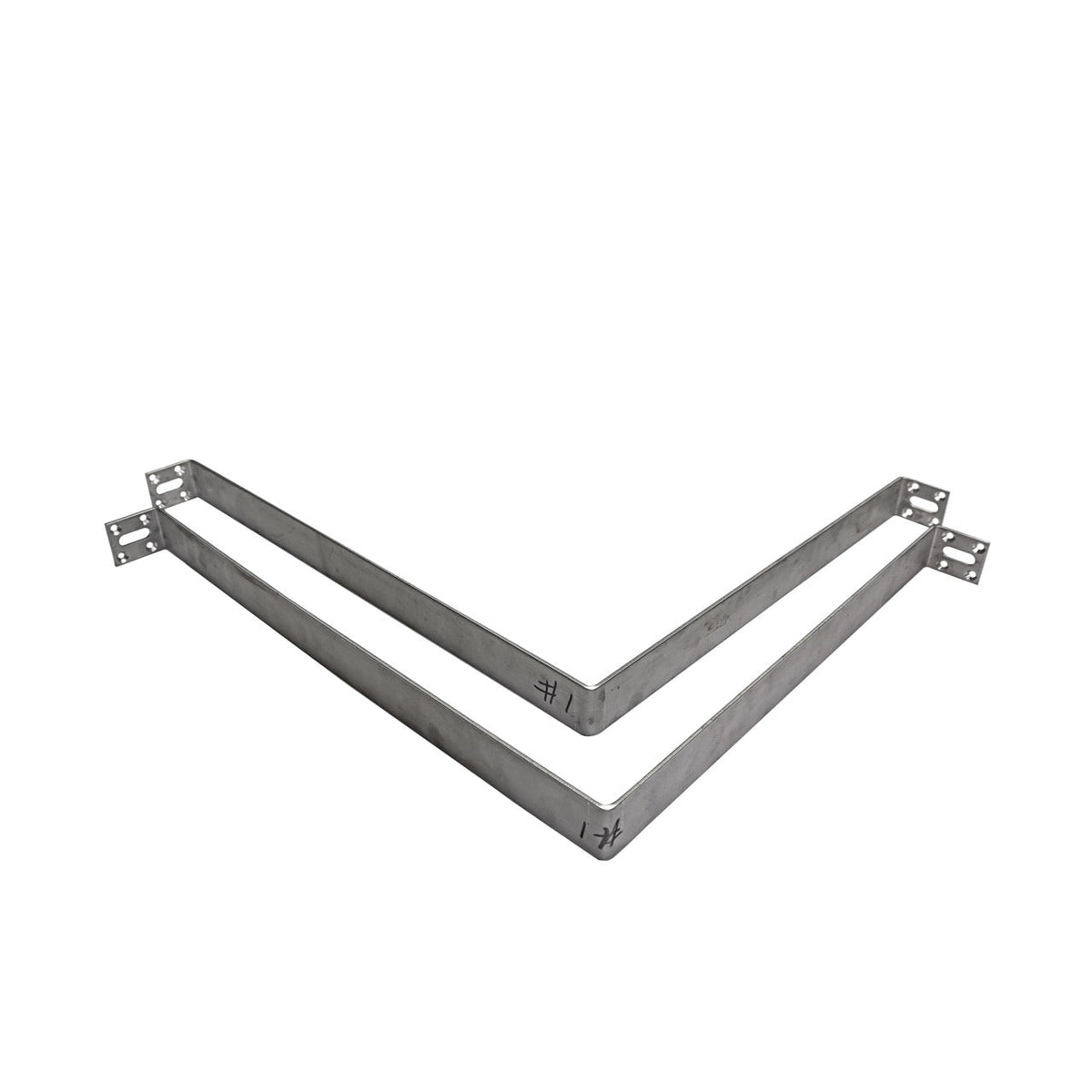

• Mounting Solution: Optional Aluminum Strapping Kit Available

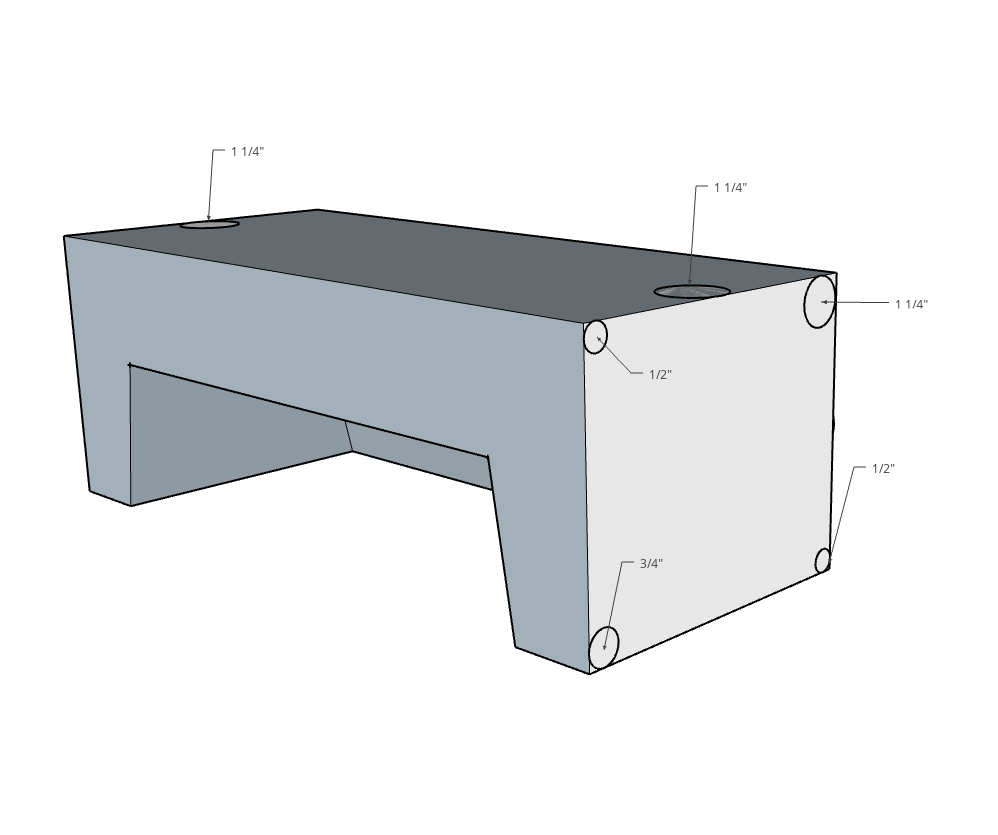

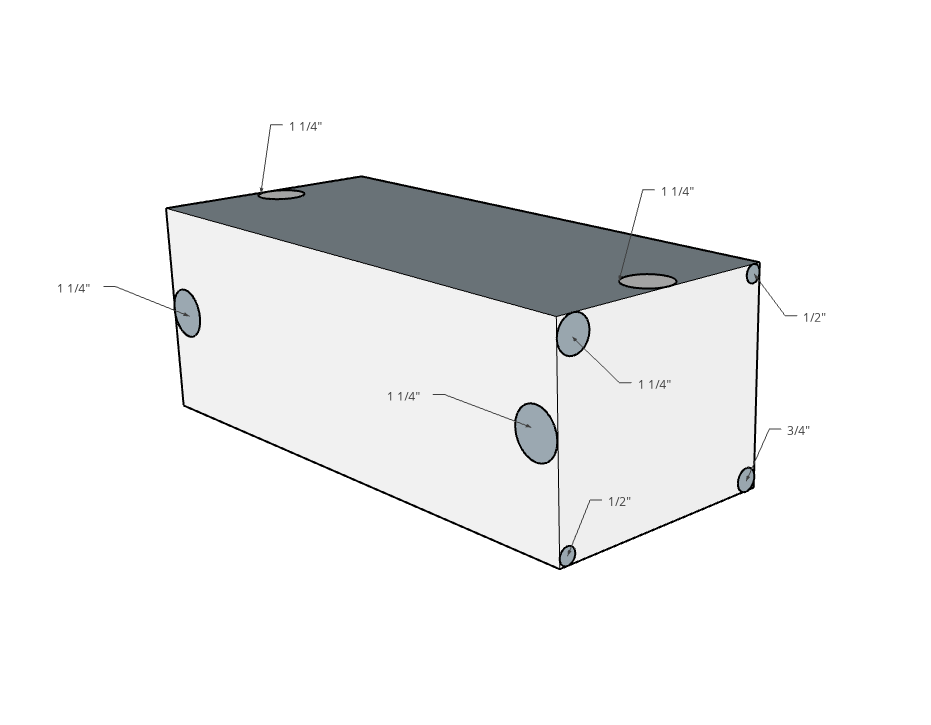

Top Ports

• 1 × 1-1/2" Drill-Out Membrane Port (Top at One End)
• 2 × 1-1/4" Drill-Out Membrane Ports (Top at Either End)

End Ports

• 2 × 1-1/4" Drill-Out Membrane Ports (One on Each End)
• 2 × 3/4" Ports (One on Each End)
• 4 × 1/2" Ports (Two on Each End)

Side Ports

• 1 × 1-1/2" Drill-Out Membrane Port (Side of Tank)
• 2 × 1-1/4" Drill-Out Membrane Ports (Side of Tank)

Port Details

• All Ports: NPT Female Thread
• Membrane Design: Ports require drilling before use
• Unused Ports: Membrane design eliminates the need for plugs when ports are not used
