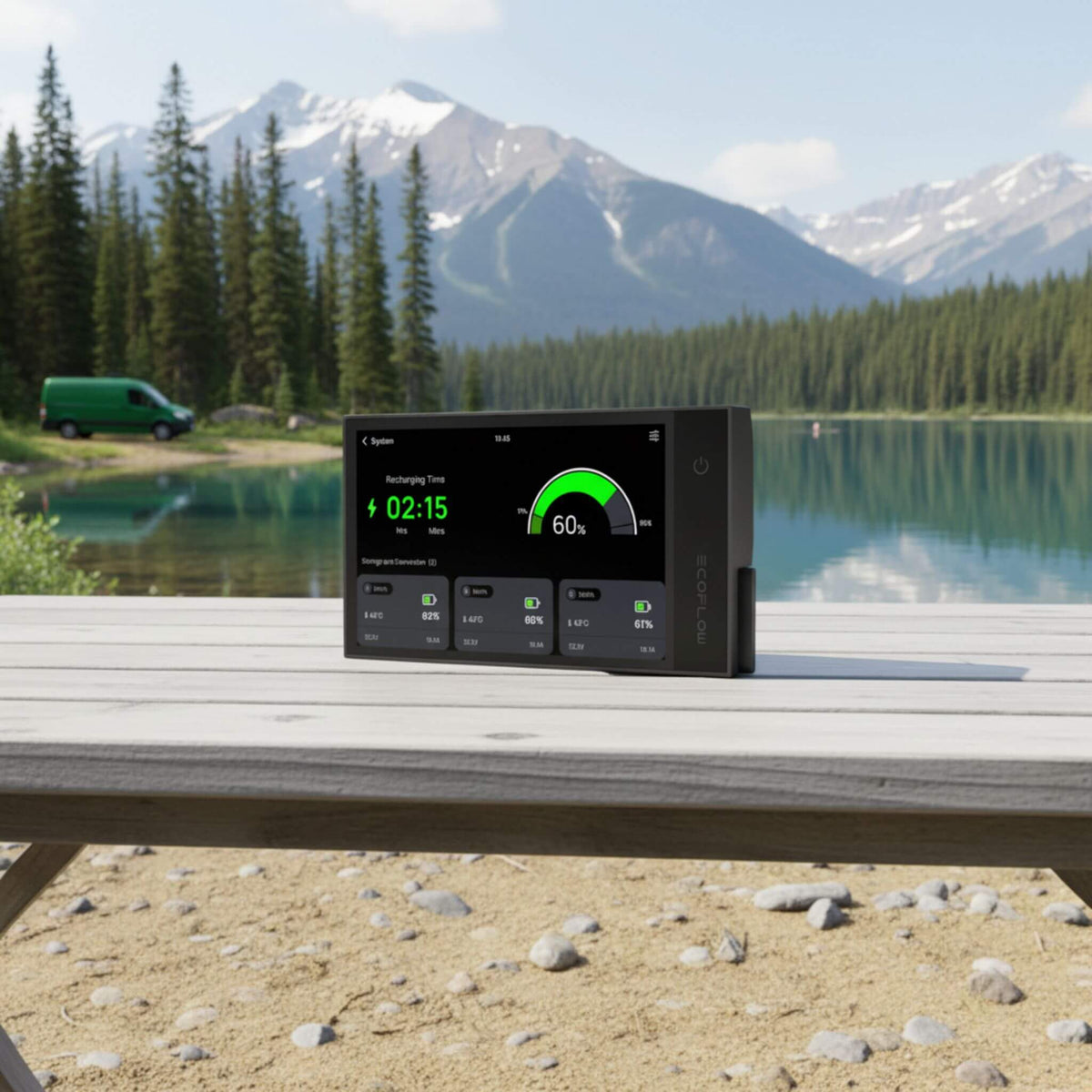

Monitor and control your EcoFlow Power Kits system in real time. The Power Kits Console allows you to manage system settings, view energy data, and control power directly from a central interface.
Key features
- Real-time monitoring of battery level, input/output power, and usage data
- Control system power on/off directly from the console
- Configure charging and discharging parameters
- Adjust AC input and DC output settings

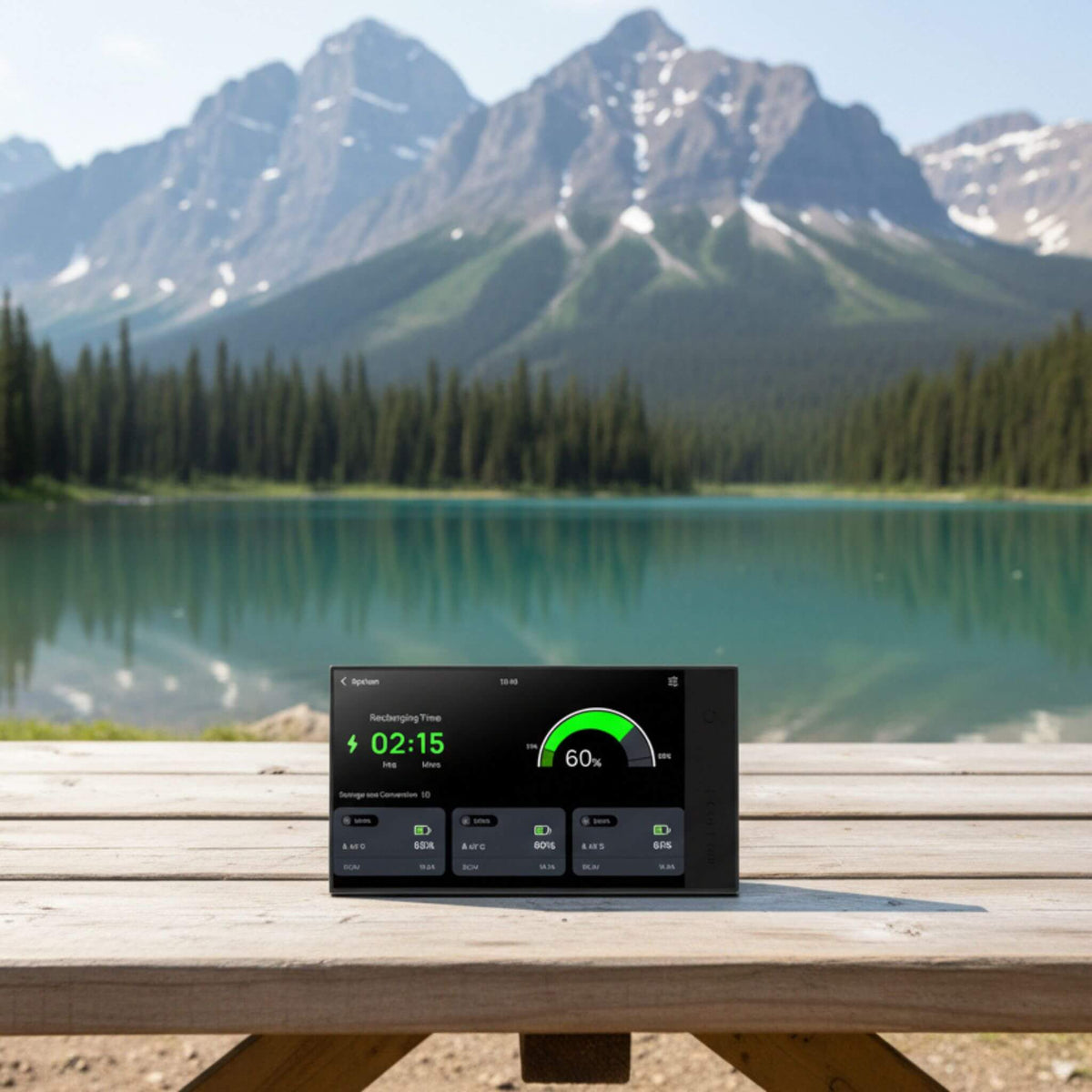

- Touchscreen interface for direct system control
⚠️ Important
- Firmware update required for 1T2 accessory compatibility
- Minimum required firmware versions:
- DELTA 3 Max Plus: v7.80.98.44 or higher
- DELTA 3 Ultra Plus: v7.80.98.46 or higher
- Each battery must be updated separately to complete the installation
- Contact EcoFlow support if the firmware update is not available
A central control interface for your EcoFlow system. Monitor performance, adjust settings, and manage your energy with precision.
- Display: Touchscreen (1024 × 600 resolution)
- Screen Size: 154.2 mm × 85.9 mm
- Ports: RJ45 CAN Bus, USB-C, USB-A
- USB-A Output : up to 5 V/1A
- Operating Temperature: -20 °C to 50 °C
- Weight: 450 g
- Dimensions: 204.5 mm × 113.3 mm × 22.3 mm
Click the links below to access the installation guides:
👉 EcoFlow Power Hub User Manual
👉 EcoFlow Power Kit Console User Manual
👉 EcoFlow 2kWh & 5kWh LFP Battery User Manual
