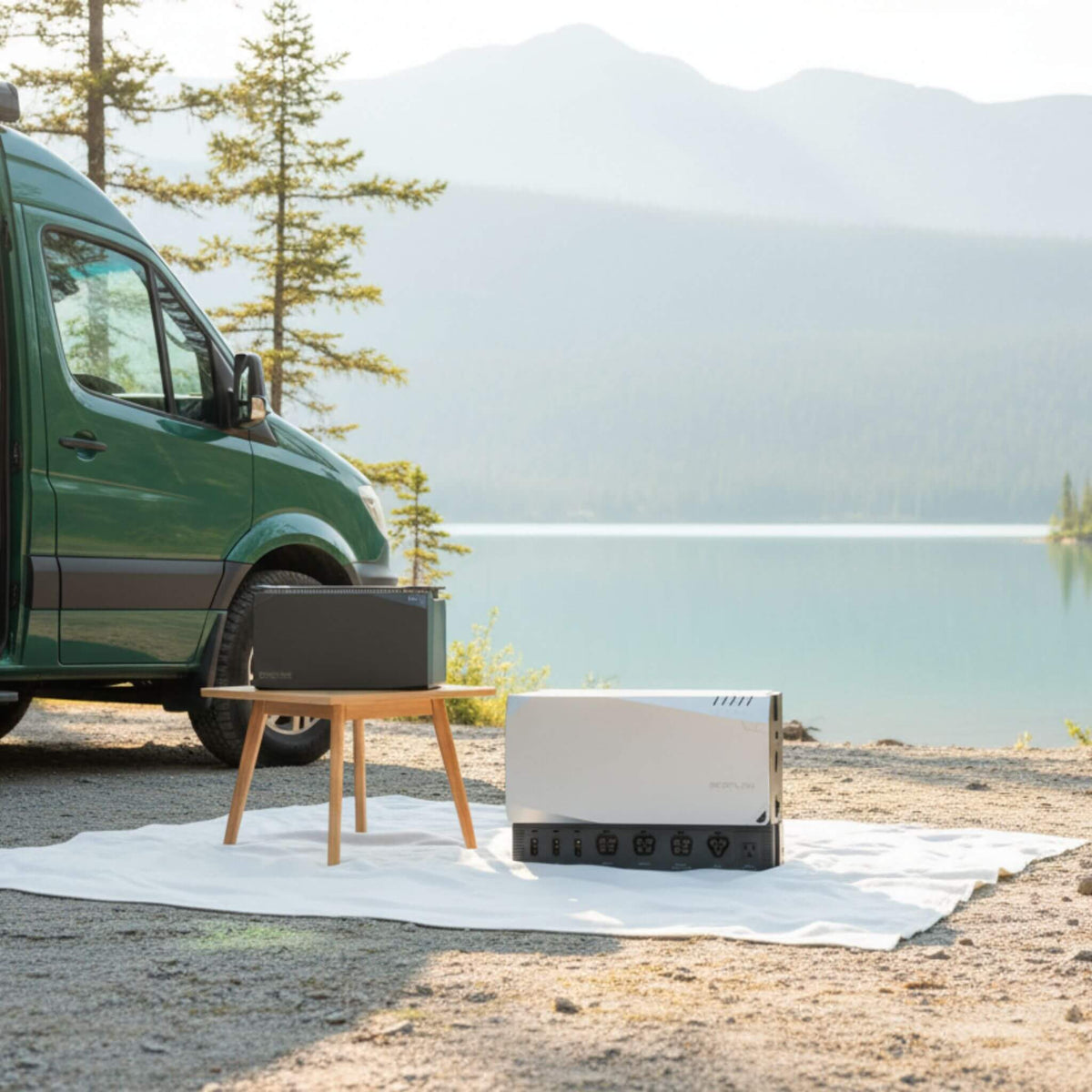

EcoFlow power hub and batteries installed with clean wiring inside van electrical system

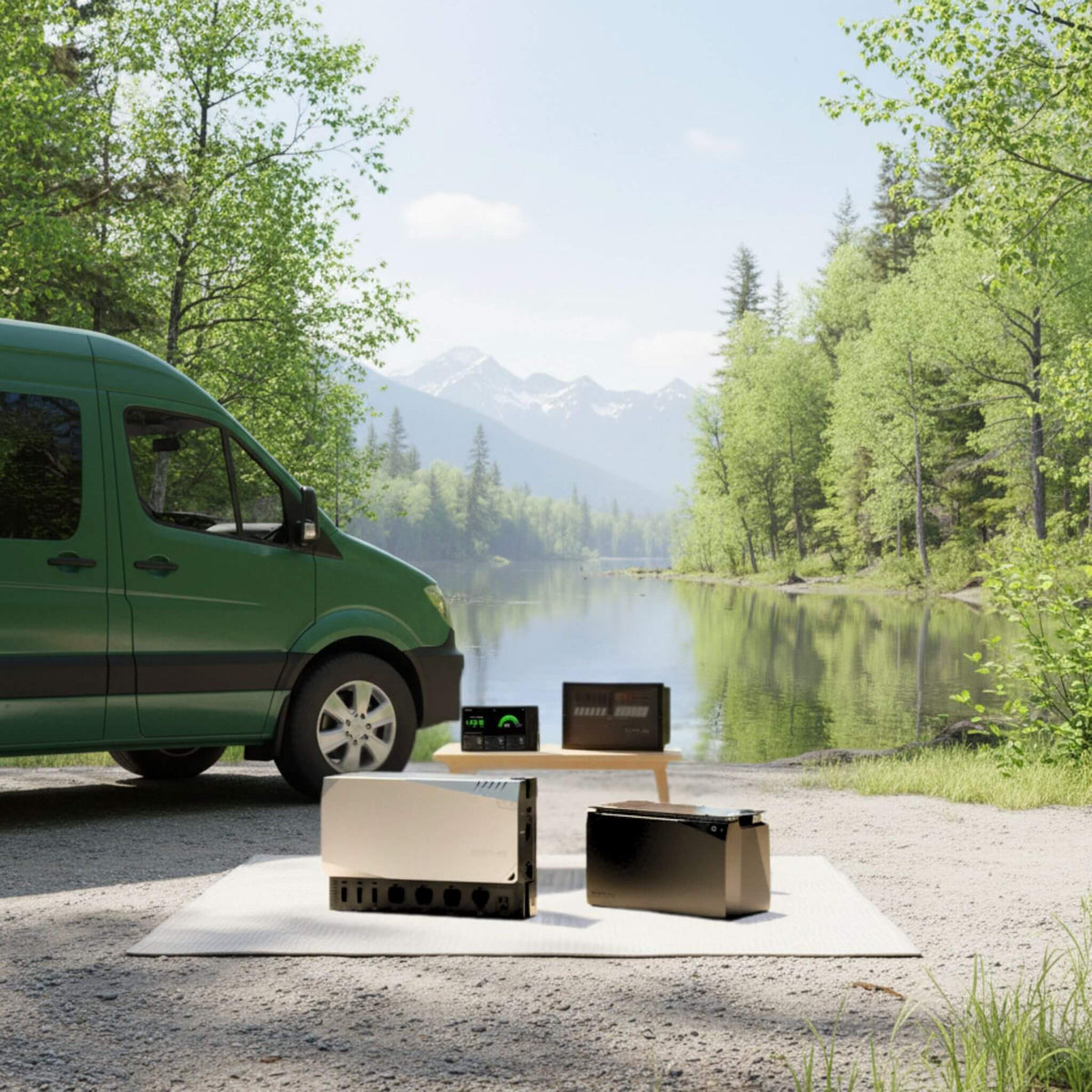

EcoFlow 5kWh power system installed inside a van conversion with clean electrical setup

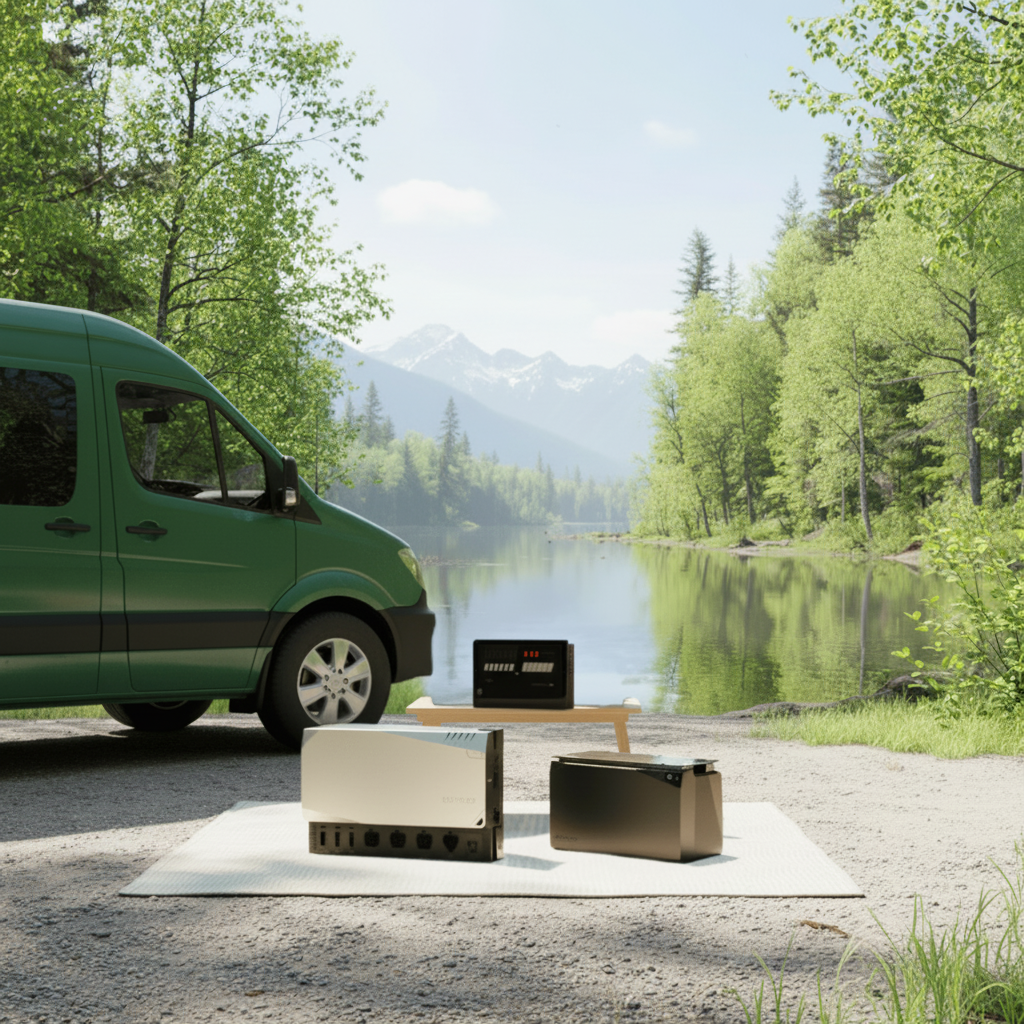

EcoFlow compact power system integrated into a custom van build for reliable off-grid use

5KW POWER SYSTEM | RELIABLE OFF-GRID ENERGY | ECOFLOW

$8,956.00
$8,956.00
$8,956.00
Sold Out

Model: Get The Kit (5KWH)

VIEW PACKAGE DETAILS BELOW

EcoFlow Power Kits are integrated 48V power systems designed for van conversions, RVs, and off-grid builds.

The system combines charging, energy storage, and power distribution into one compact plug-and-play platform built around the EcoFlow Power Hub and stackable LiFePO₄ batteries.

Designed to simplify electrical installations, Power Kits allow builders to create clean, expandable power systems without the complexity of traditional multi-component setups.

With multiple charging options and expandable battery capacity, Power Kits provide a reliable and scalable electrical solution for mobile and off-grid installations.

Choose the kit configuration that fits your build

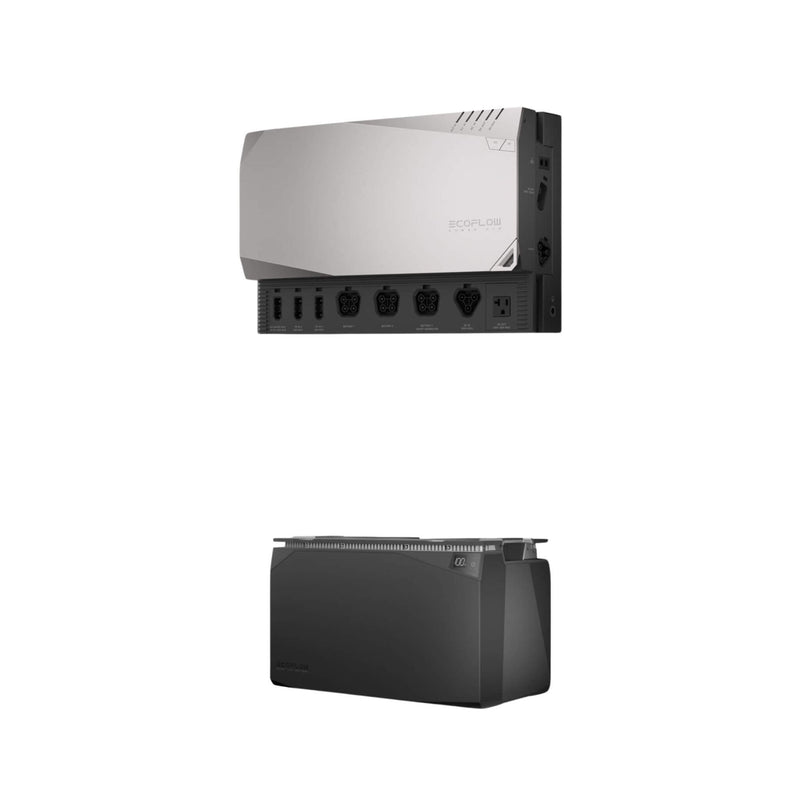

EcoFlow Get Set Kit 5kWh package with power hub battery and cable pack included

Get Set Kit (5kWh)

Includes:

1 x Power Hub

1 x 5kWh LFP Battery

1 x Cable Pack

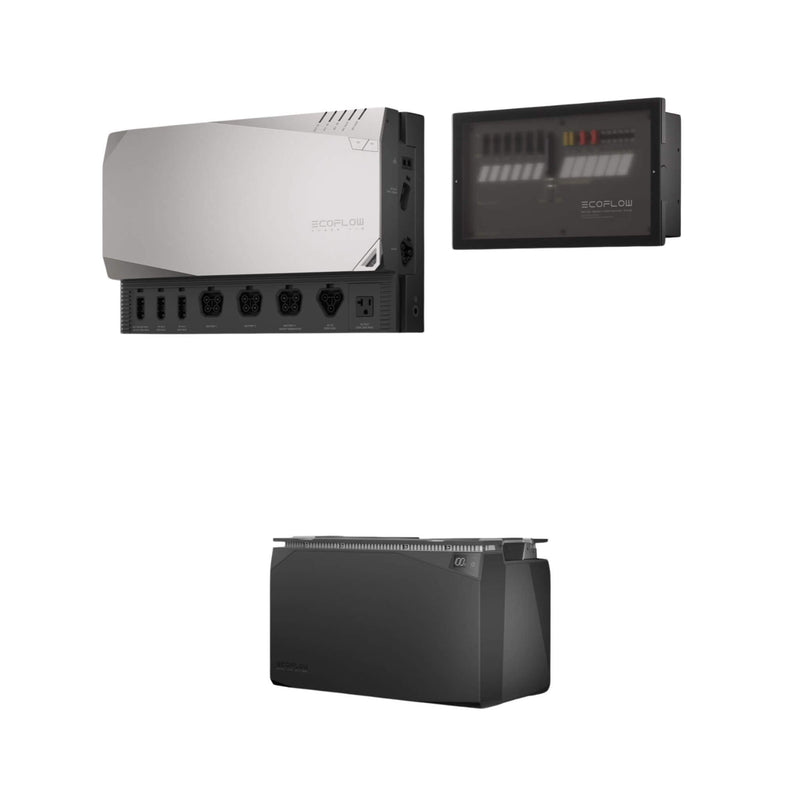

EcoFlow Prepared Kit 5kWh package with power hub battery cable pack and distribution panel

Prepared Kit (5kWh)

Includes:

1 x Power Hub

1 x 5kWh LFP Battery

1 x Cable Pack

1 x AC / DC Smart Distribution Panel

1 x Battery Mounting Strap

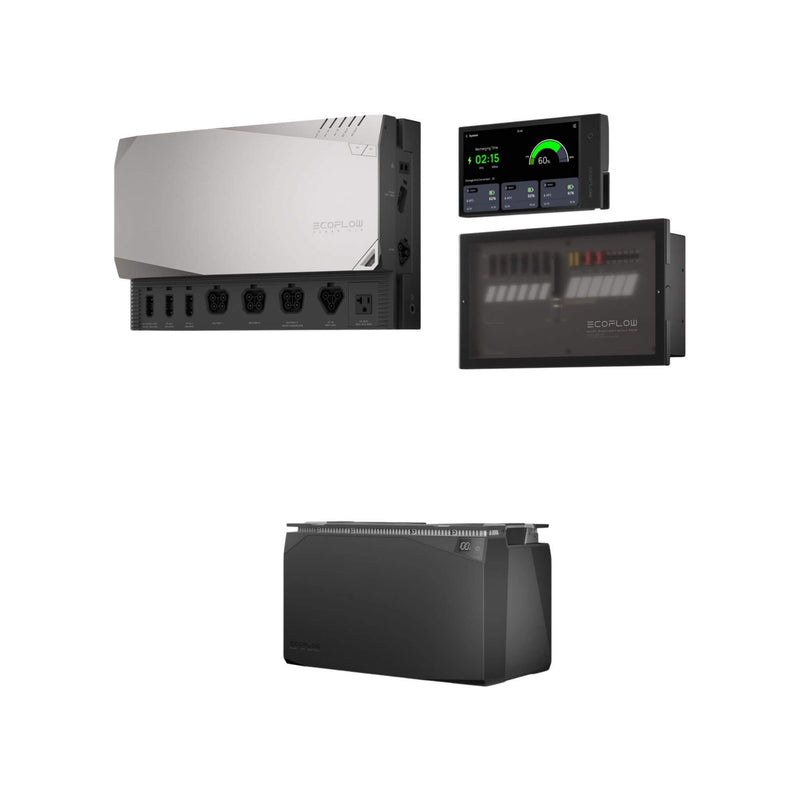

EcoFlow Independence Kit 5kWh complete package with power hub battery console and accessories

Independence Kit (5kWh)

Includes:

1 x Power Hub

1 x 5kWh LFP Battery

1 x Cable Pack

1 x AC / DC Smart Distribution Panel

1 x Power Kit Console

1 x Battery Mounting Strap

Information

🔌 All-in-One Power Hub

The EcoFlow Power Hub integrates multiple electrical components into a single compact unit, simplifying installation and reducing wiring complexity.

⚡3600W AC Output

Delivers 3600W AC output capable of powering common appliances used in vans, RVs, and off-grid builds.

🔋Four Charging Methods

  • Up to 4800W solar input (3 × 1600W ports)
  • 1000W alternator charging while driving
  • 3000W shore power input
  • 1800W Smart Generator input

Solar panels are sold separately.

🧱Expandable Battery System

Stackable 2kWh and 5kWh LiFePO₄ batteries allow total system capacity up to 15kWh depending on configuration.

🔧48V Electrical Architecture

The 48V system reduces electrical current compared to traditional 12V systems, helping minimize heat generation and power loss.

📱Smart Monitoring & Control

Monitor and manage your system using the EcoFlow Power Kit Console or the EcoFlow mobile app for real-time system monitoring.

Power Hub

  • Net Weight: 14 kg (31 lb)
  • Dimensions: 480 × 140 × 300 mm (18.9 × 5.5 × 11.8 in)
  • Wi-Fi: Supported (2.4G, <120 m)
  • Bluetooth: Supported (<15 m)
  • Mobile App: Supported
  • AC Output: Pure Sine Wave, 3600W (7200W surge), 120V, 60Hz
  • DC Output: 13.6V / 70A (1000W max), 26.4V / 60A (1600W max)
  • AC Input: X-Stream fast charging, 3000W max, 30A max
  • AC Input Voltage: 120V, 60Hz
  • Operating Temperature: −25°C to 60°C (−13°F to 140°F)
  • Storage Temperature: −25°C to 60°C (−13°F to 140°F)

LFP Batteries

  • Battery Options: 2kWh or 5kWh LiFePO₄ batteries
  • Protection Rating: IP54

Power Kit Console

  • Touch Screen: 7-inch display (6 × 3.4 in)
  • Power Supply Voltage: 12 VDC
  • Operating Temperature: −4°F to 140°F

AC/DC Smart Distribution Panel

  • AC Input: 30A max, 120V, 3600W
  • DC Input: 70A max
  • AC Output: 6 AC positions (20A max each)
  • DC Output: 12 fused DC positions (6 controllable via console or app)
  • Operating Temperature: −13°F to 140°F
  • Dimensions: 8.3 × 13.9 × 3.9 in (H × W × D)
  • Net Weight: 5.7 lb
  • Protection Rating: IP21

Certifications

  • UL
  • FCC
  • ICES
  • CE
  • UKCA
  • E-Mark
  • RCM
  • TELEC
  • KCC

Click the links below to access the installation guides:

👉 EcoFlow Power Hub User Manual


👉 EcoFlow Power Kit Console User Manual

👉 EcoFlow 2kWh & 5kWh LFP Battery User Manual

👉 EcoFlow Battery Power Distribution Terminal Manual

👉 EcoFlow Alternator Charger 800W

Find the battery stack that fits your power needs

EcoFlow Power Kits are available in multiple capacities from 2kWh to 15kWh depending on configuration.

EcoFlow battery capacity options from 2kWh to 15kWh showing different power configurations
