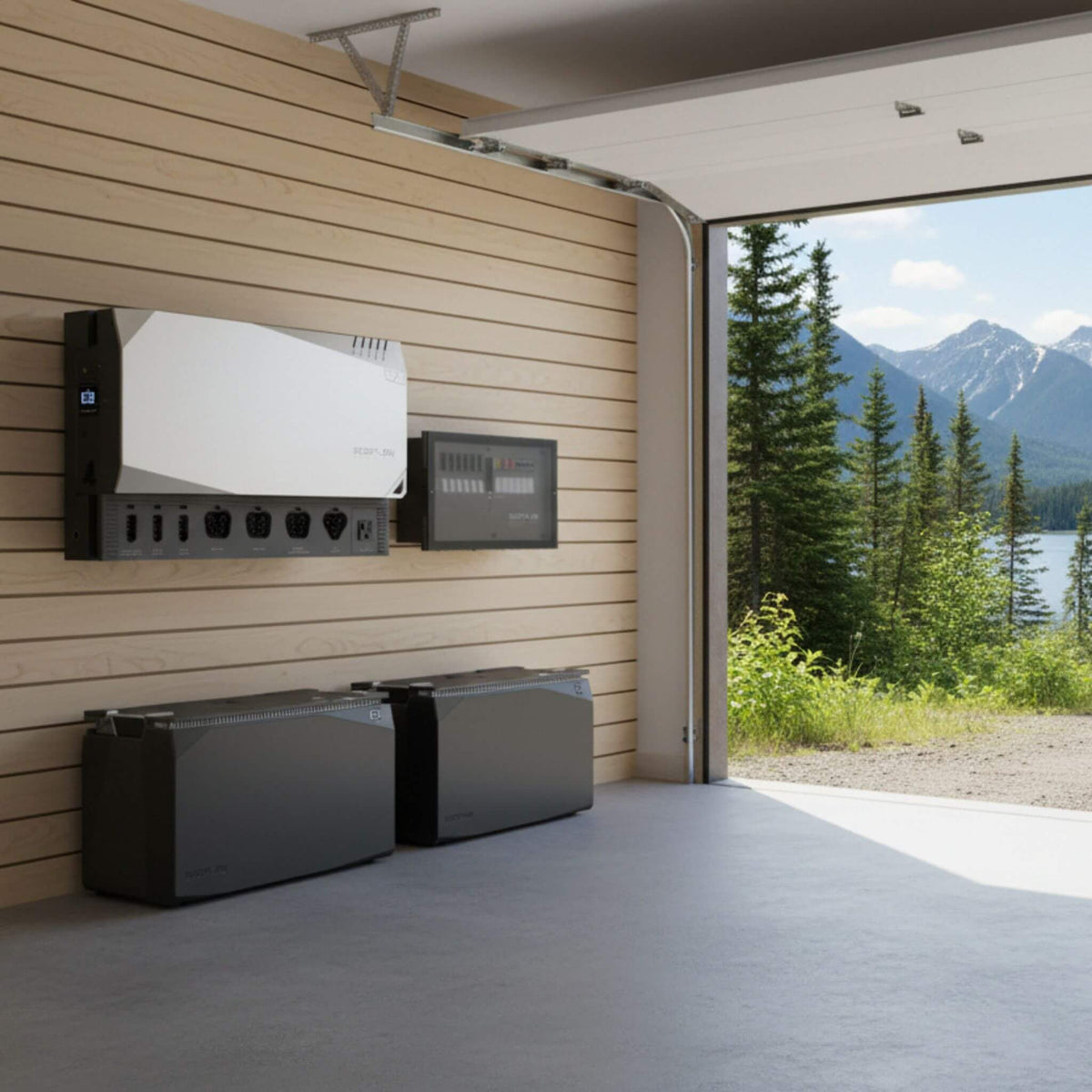

EcoFlow 48V electrical power system installed inside a van conversion cabinet

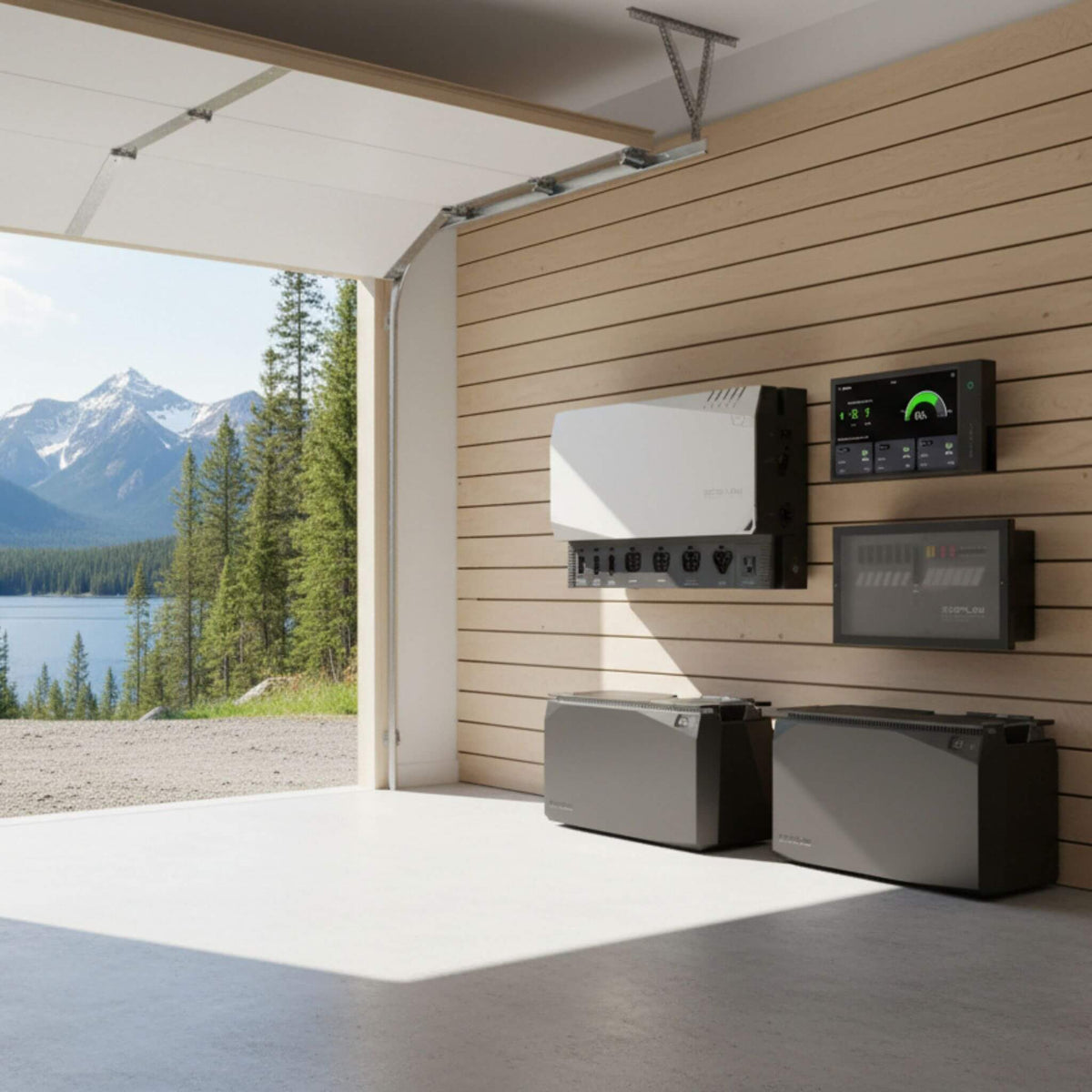

EcoFlow Power Hub integrated inverter and charging system for van and off grid builds

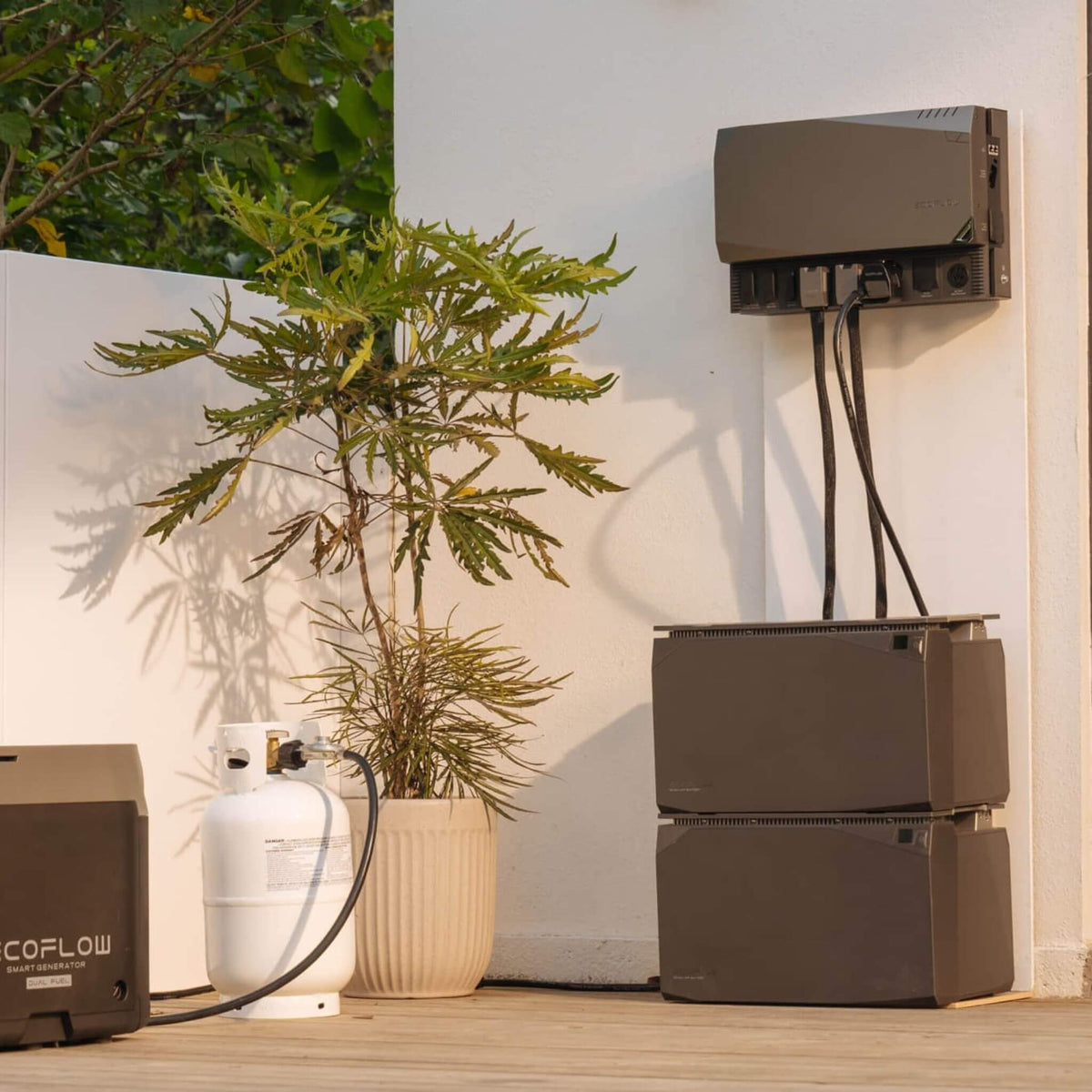

Stackable EcoFlow LFP batteries for expandable van electrical power system

ECOFLOW 10 KWH POWER KITS

$14,075.00
$14,075.00
$14,616.00
Sold Out

Model: Get The Kit (10KWH)

VIEW PACKAGE DETAILS BELOW

EcoFlow Power Kits are integrated 48V power systems designed for van conversions, RVs, and off-grid builds.

The system combines charging, energy storage, and power distribution into one compact plug-and-play platform built around the EcoFlow Power Hub and stackable LiFePO₄ batteries.

Designed to simplify electrical installations, Power Kits allow builders to create clean, expandable power systems without the complexity of traditional multi-component setups.

With multiple charging options and expandable battery capacity, Power Kits provide a reliable and scalable electrical solution for mobile and off-grid installations.

Choose the kit configuration that fits your build

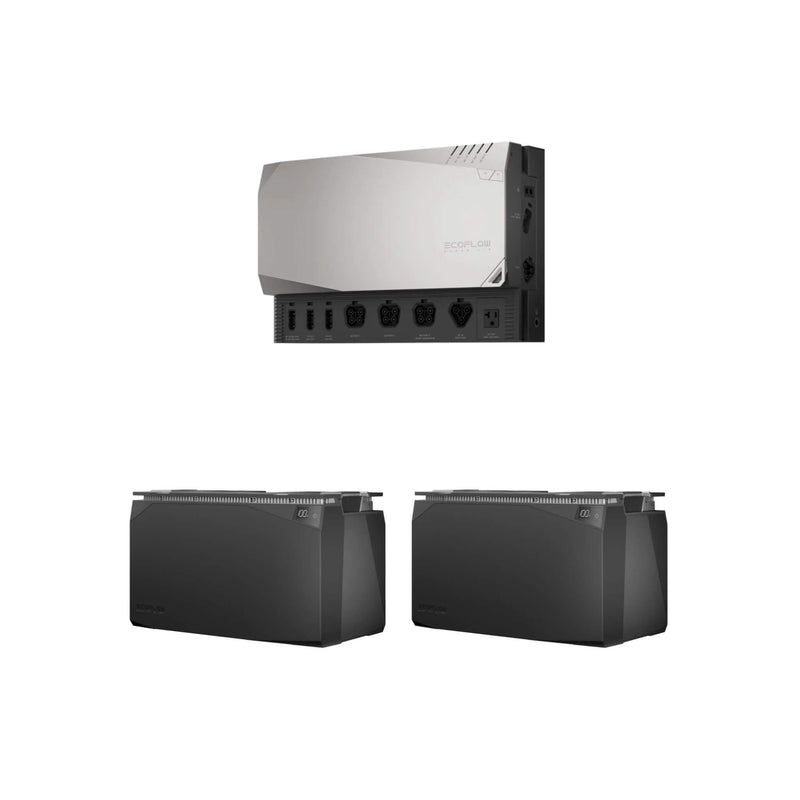

EcoFlow Power Kit Get Set configuration with power hub, batteries and cable pack for van electrical system

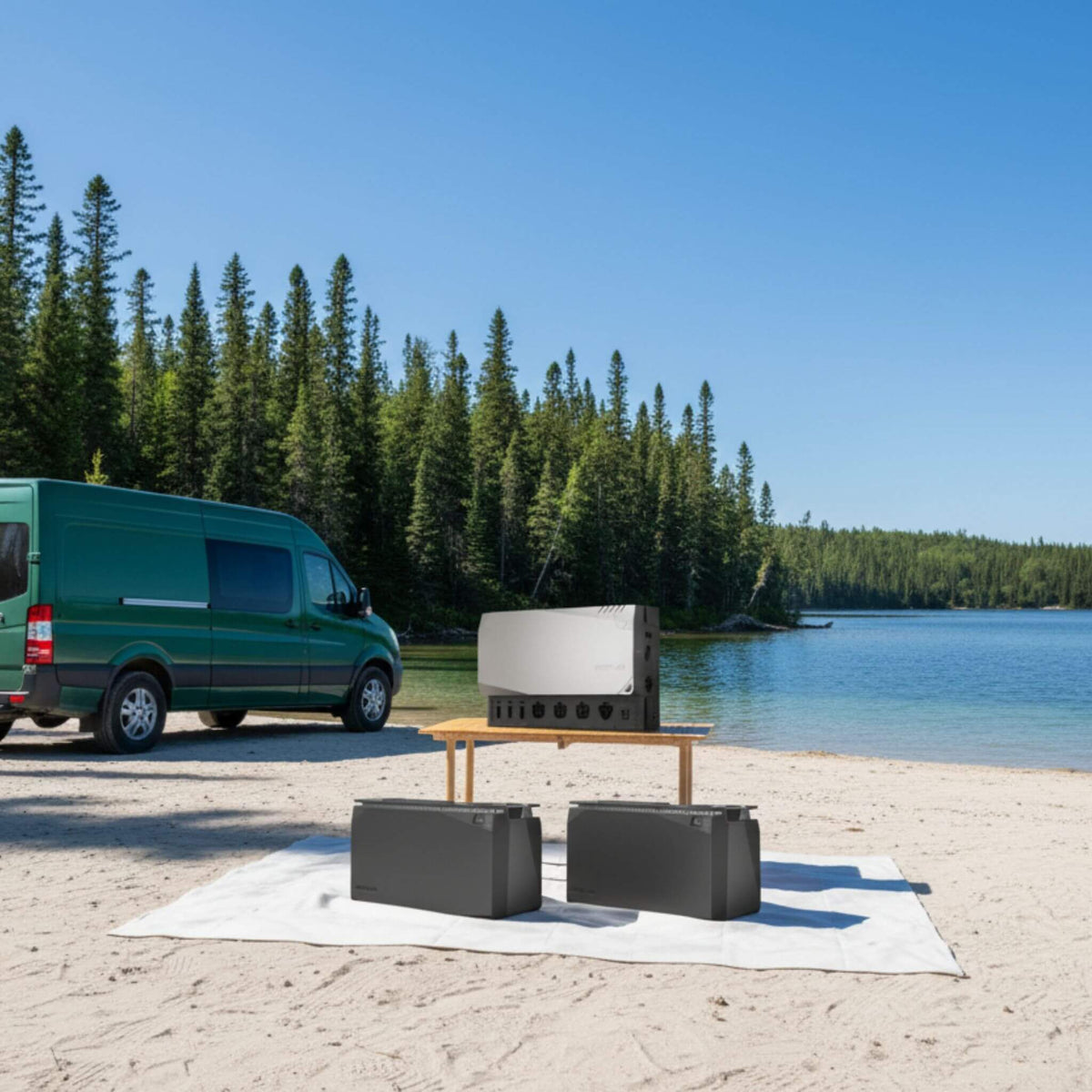

Get Set Kit (10kWh)

Includes:

1x Power Hub

2x 5kWh LFP Battery

1x Cable Pack

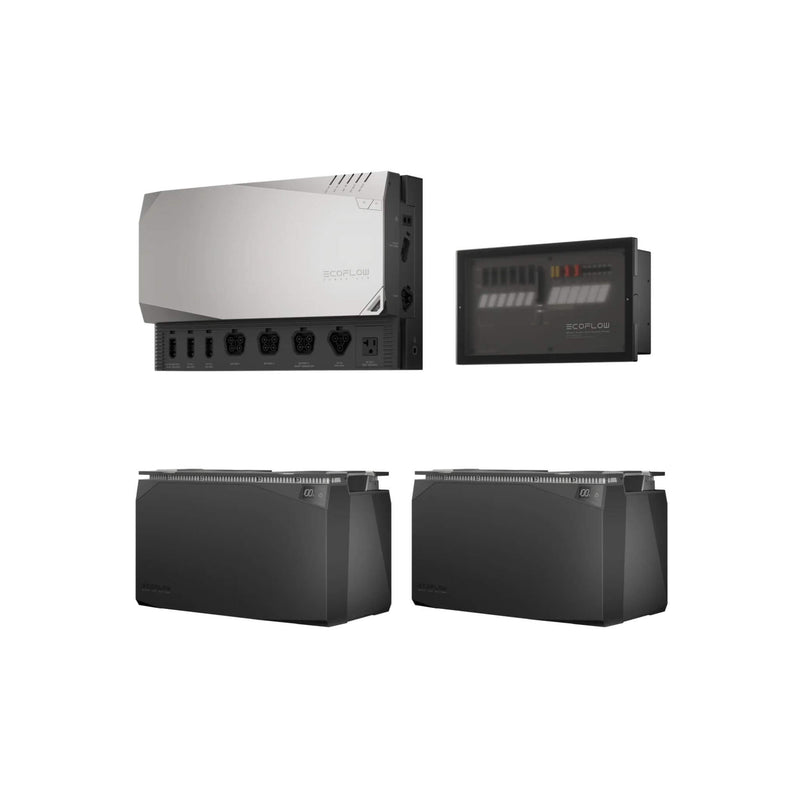

EcoFlow Prepared Power Kit bundle including power hub, batteries, cable pack and AC DC distribution panel

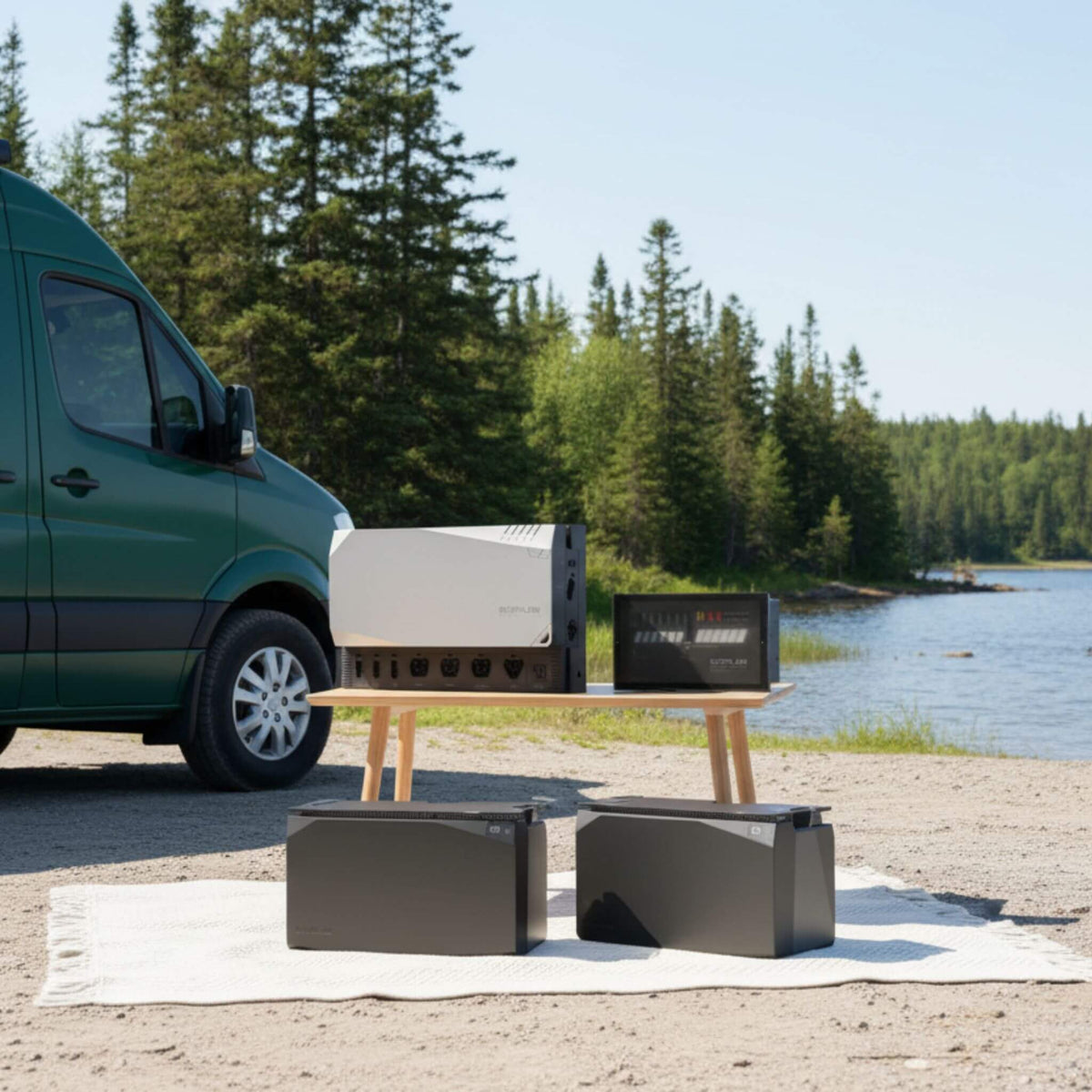

Prepared Kit (10kWh)

Includes:

1x Power Hub

2x 5kWh LFP Battery

1x Cable Pack

1x AC / DC Smart Distribution Panel

2x Battery Mounting Strap

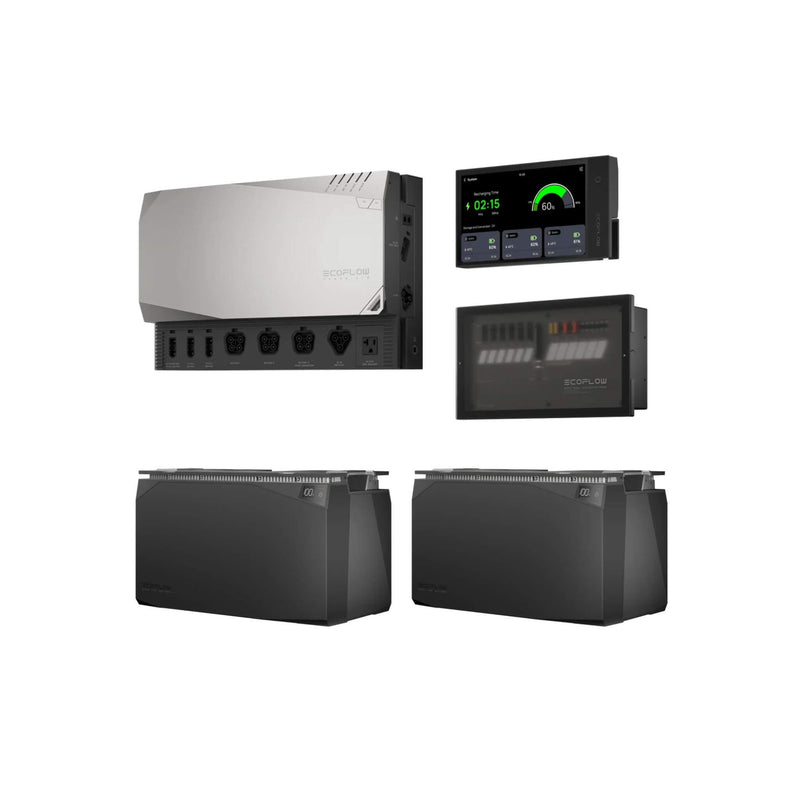

EcoFlow Independence Power Kit system with power hub, batteries, console and distribution panel for van conversion

Independence Kit (10kWh)

Includes:

1x Power Hub

2x 5kWh LFP Battery

1x Cable Pack

1x AC / DC Smart Distribution Panel

1x Power Kit Console

2x Battery Mounting Strap

Information

🔌 All-in-One Power Hub

The EcoFlow Power Hub integrates multiple electrical components into a single compact unit, simplifying installation and reducing wiring complexity.

⚡3600W AC Output

Delivers 3600W AC output capable of powering common appliances used in vans, RVs, and off-grid builds.

🔋Four Charging Methods

  • Up to 4800W solar input (3 × 1600W ports)
  • 1000W alternator charging while driving
  • 3000W shore power input
  • 1800W Smart Generator input

Solar panels are sold separately.

🧱Expandable Battery System

Stackable 2kWh and 5kWh LiFePO₄ batteries allow total system capacity up to 15kWh depending on configuration.

🔧48V Electrical Architecture

The 48V system reduces electrical current compared to traditional 12V systems, helping minimize heat generation and power loss.

📱Smart Monitoring & Control

Monitor and manage your system using the EcoFlow Power Kit Console or the EcoFlow mobile app for real-time system monitoring.

Power Hub

  • Net Weight: 14 kg (31 lb)
  • Dimensions: 480 × 140 × 300 mm (18.9 × 5.5 × 11.8 in)
  • Wi-Fi: Supported (2.4G, <120 m)
  • Bluetooth: Supported (<15 m)
  • Mobile App: Supported
  • AC Output: Pure Sine Wave, 3600W (7200W surge), 120V, 60Hz
  • DC Output: 13.6V / 70A (1000W max), 26.4V / 60A (1600W max)
  • AC Input: X-Stream fast charging, 3000W max, 30A max
  • AC Input Voltage: 120V, 60Hz
  • Operating Temperature: −25°C to 60°C (−13°F to 140°F)
  • Storage Temperature: −25°C to 60°C (−13°F to 140°F)

LFP Batteries

  • Battery Options: 2kWh or 5kWh LiFePO₄ batteries
  • Protection Rating: IP54

Power Kit Console

  • Touch Screen: 7-inch display (6 × 3.4 in)
  • Power Supply Voltage: 12 VDC
  • Operating Temperature: −4°F to 140°F

AC/DC Smart Distribution Panel

  • AC Input: 30A max, 120V, 3600W
  • DC Input: 70A max
  • AC Output: 6 AC positions (20A max each)
  • DC Output: 12 fused DC positions (6 controllable via console or app)
  • Operating Temperature: −13°F to 140°F
  • Dimensions: 8.3 × 13.9 × 3.9 in (H × W × D)
  • Net Weight: 5.7 lb
  • Protection Rating: IP21

Certifications

  • UL
  • FCC
  • ICES
  • CE
  • UKCA
  • E-Mark
  • RCM
  • TELEC
  • KCC

Click the links below to access the installation guides:

👉 EcoFlow Power Hub User Manual
👉 EcoFlow Power Kit User Manual
👉 EcoFlow 2kWh & 5kWh LFP Battery User Manual
👉 EcoFlow Battery Power Distribution Terminal Manual

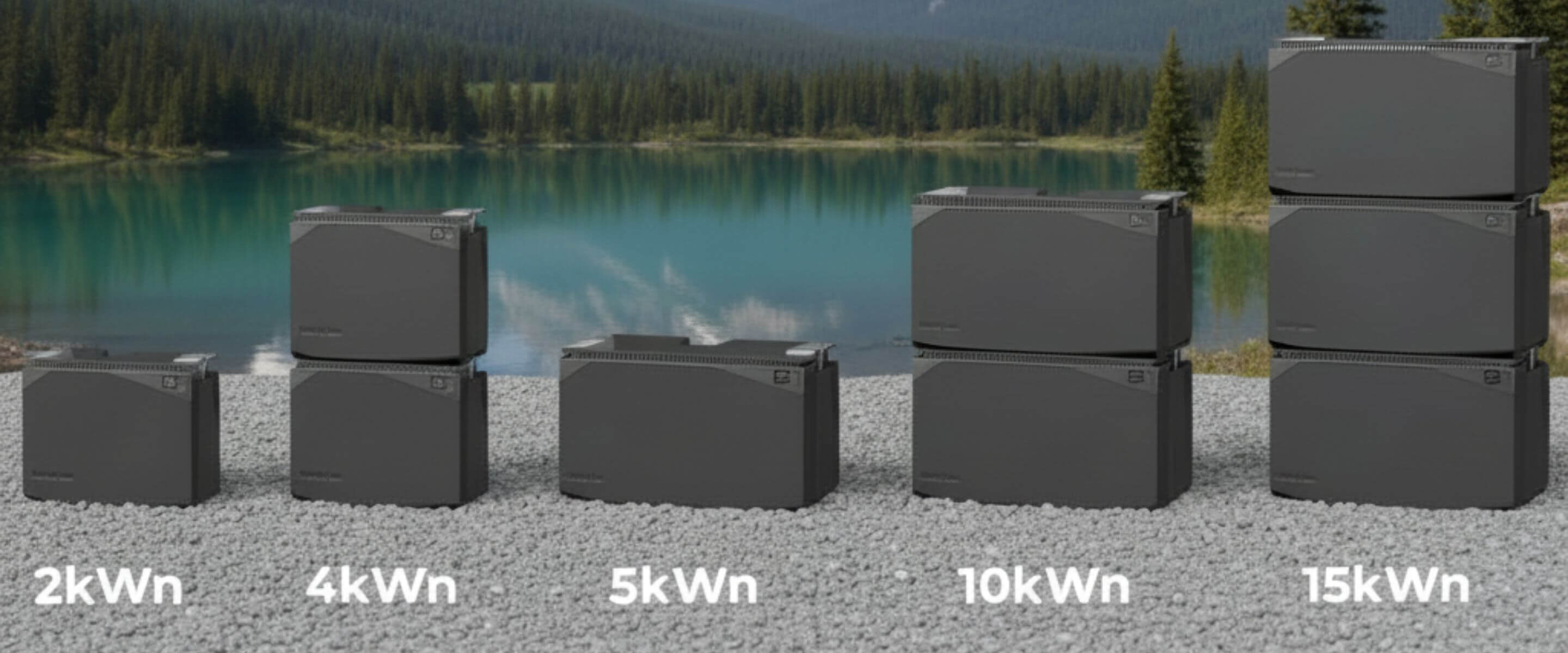

Find the battery stack that fits your power needs

EcoFlow Power Kits are available in multiple capacities from 2kWh to 15kWh depending on configuration.
